E4 vs E4D vs E14 vs ED4 Ultrasonic Endo Tips: Uses and Compatibility
Direct answer: E4, E4D, E14 and ED4 are not interchangeable names. E4 is generally selected as a long, slender, non-diamond ultrasonic endodontic tip for suitable obstructions in the coronal or upper portion of a root canal. E4D adds a diamond-coated working surface for cases where controlled abrasive action is required. E14 is a retrieval-style tip commonly selected for suitable separated instruments or deeper canal obstructions. ED4 belongs to a similar clinical category but is intended for a different handpiece connection system. Always confirm the exact scaler handpiece, thread and manufacturer compatibility chart before ordering.
Quick Comparison: E4, E4D, E14 and ED4
| Tip | Working-surface distinction | Typical clinical selection | Connection guidance |
|---|---|---|---|
| E4 | Non-diamond, long and slender | Selected root-filling obstructions and suitable foreign material in the coronal or upper portion of the canal | Gold Cura E4 is offered for Woodpecker and EMS-type screw-in handpieces, subject to model and thread confirmation |
| E4D | Diamond-coated working surface | Suitable calcification, hardened material or defective filling material where controlled abrasive action is clinically required | Gold Cura E4D is offered for Woodpecker and EMS-type screw-in handpieces, subject to model and thread confirmation |
| E14 | Long retrieval-style design | Selected separated instruments, foreign bodies or deeper root canal obstructions | Gold Cura E14 is offered for Woodpecker and EMS-type screw-in handpieces, subject to model and thread confirmation |
| ED4 | Model naming used for a similar clinical category | Selection depends on the manufacturer’s stated indication | Generally associated with DTE, Satelec or NSK-type connection systems; verify the exact equipment chart |

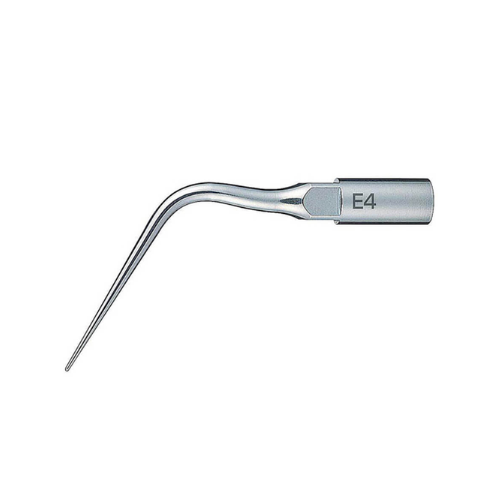

What Is an E4 Ultrasonic Endo Tip?
The E4 is a specialised, non-diamond ultrasonic endodontic tip. Its long and slender design is intended to assist with controlled work around suitable root-filling obstructions or foreign material in the visible, upper portion of a canal during retreatment. It is not a general scaling, periodontal or prophylaxis tip.
The Gold Cura E4 ultrasonic endo tip is positioned for Woodpecker and EMS-type screw-in ultrasonic handpieces. Compatibility depends on the handpiece connection and thread—not only the scaler brand name.
What Is the Difference Between E4 and E4D?
The main distinction is the working surface:
- E4: non-diamond working tip for controlled ultrasonic action around suitable obstructions.
- E4D: diamond-coated working surface for cases where additional abrasive action is clinically required.
A diamond-coated tip should not automatically be treated as the better choice. The correct selection depends on the material being addressed, canal anatomy, access, visibility and the clinician’s technique. View the Gold Cura E4D diamond-coated ultrasonic endo tip.
What Is an E14 Ultrasonic Endo Tip Used For?
E14 is a retrieval-style ultrasonic endodontic tip commonly considered for suitable separated instruments, foreign bodies and deeper obstructions. Retrieval procedures are highly technique-sensitive and require controlled access, visibility and careful power selection.
E14 should not be selected merely because an obstruction is present. The obstruction’s position, surrounding dentine, root anatomy and visibility must guide the clinician’s decision. View the Gold Cura E14 ultrasonic endo tip.
What Does ED4 Mean?
ED4 is commonly used as a model designation for a similar endodontic-tip category intended for a different connection family. In practical purchasing terms, the most important distinction is usually the handpiece thread. DTE, Satelec and NSK-type systems may require an ED-series connection rather than an E-series Woodpecker or EMS-type connection.
Do not assume that two visually similar tips will fit the same handpiece. Confirm the scaler model, handpiece model and thread before purchase.
How to Choose the Correct Ultrasonic Endo Tip
- Identify the clinical objective. Determine whether the procedure involves coronal root-filling material, calcification, hardened material, a separated instrument or another obstruction.
- Assess the location. A visible obstruction in the upper canal may require a different design from a deeper obstruction.
- Check the working surface. Decide whether a non-diamond or diamond-coated tip is appropriate for the selected procedure.
- Confirm the connection. Match the tip to the exact ultrasonic handpiece thread and model.
- Follow the instructions for use. Use the recommended endodontic mode, power setting, irrigation or dry-working guidance, and reprocessing instructions supplied with the product.
Woodpecker and EMS Compatibility: What Dentists Should Check
“Woodpecker compatible” or “EMS compatible” should be treated as connection guidance, not a guarantee that every scaler sold under those brands uses the same fitting. Before ordering, check:
- The scaler model.
- The handpiece model.
- The screw thread or connection family.
- The product compatibility chart or instructions for use.
- Whether the tip is intended for the required endodontic application.
Clinical Safety Considerations
- Ultrasonic endodontic retreatment and retrieval are technique-sensitive procedures for trained dental professionals.
- Maintain controlled access and visibility throughout use.
- Avoid excessive axial or apical pressure.
- Do not force a long tip into a narrow, curved or constricted canal.
- Use only the power, working mode and irrigation protocol specified by the equipment and tip instructions.
- Follow the supplied instructions regarding single-use status, cleaning, disinfection, sterilisation or permitted reprocessing.
- Do not use a bent, cracked, worn or damaged tip.
Frequently Asked Questions
Is E4 the same as E4D?
No. E4 is non-diamond, while E4D has a diamond-coated working surface.
Can E4 be used to remove a broken file?
E4 may assist around selected visible foreign material, but it is not primarily positioned as a deep separated-file retrieval tip. A retrieval-style tip such as E14 may be considered depending on the case.
Is E14 always the correct tip for a separated instrument?
No. Selection depends on the instrument’s location, canal anatomy, access and visibility. Retrieval is technique-sensitive and may not be appropriate in every case.
Will an E4 tip fit every Woodpecker scaler?
Not necessarily. Compatibility depends on the exact handpiece model and thread. Confirm these details before ordering.
What is the practical difference between E4 and ED4?
The primary purchasing distinction is generally the connection family: E4 is associated with Woodpecker and EMS-type screw-in systems, while ED4 is generally associated with DTE, Satelec or NSK-type systems. Always verify the manufacturer’s chart.
Shop Gold Cura Endodontic Products
Explore Gold Cura endodontic products and equipment, including ultrasonic endo tips, irrigation activators, obturation equipment, hand files and root canal accessories for professional dental use.
This guide provides general product-selection information and does not replace the product instructions for use, equipment compatibility chart, clinical training or professional judgement.
