E4 Ultrasonic Endo Tip – Woodpecker & EMS Compatible

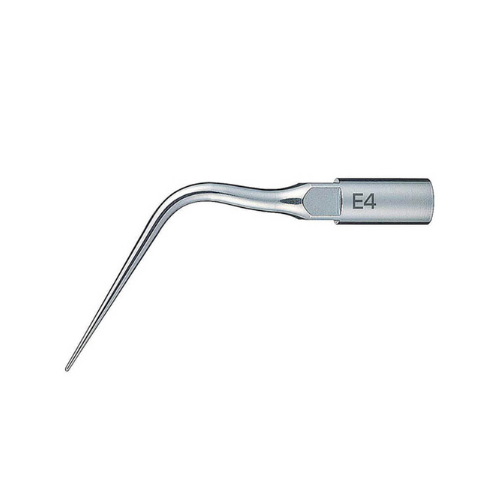

Direct answer: The Gold Cura E4 ultrasonic endo tip is a long, slender, non-diamond endodontic tip designed to assist with the controlled removal of root-filling obstructions and suitable foreign material from the coronal or upper portion of the root canal during retreatment. It is compatible with Woodpecker and EMS-type screw-in ultrasonic handpieces, subject to confirmation of the exact handpiece model and thread.

Why Dentists Choose This Product

• Clearly defined configuration: E4 long slender non-diamond ultrasonic endodontic tip for controlled coronal or upper-canal obstruction removal during retreatment.
• Compatibility guidance: For Woodpecker and EMS-type screw-in piezoelectric handpieces. Confirm the exact model and thread, and use only where access, visibility and anatomy permit.
• Known package contents: 1 × E4 Ultrasonic Endo Tip.

E4 Ultrasonic Endo Tip: Key Details

What Is the E4 Ultrasonic Endo Tip Used For?

The E4 tip is intended for selected root canal retreatment procedures where controlled ultrasonic movement is required around a visible obstruction in the upper portion of the canal.

• Assisting with the removal of root-filling material during retreatment.
• Loosening suitable canal obstructions under direct access and visibility.
• Removing suitable foreign material from the coronal portion of the canal.
• Controlled ultrasonic work in appropriate anterior-tooth cases.
• Working without the abrasive action of a diamond-coated tip.

E4 is a specialised endodontic instrument. It is not a general scaling, periodontal or prophylaxis tip.

Why Is E4 Commonly Selected for Anterior Teeth?

Anterior teeth often provide straighter access to the upper portion of the root canal. The long, slender E4 design can therefore be easier to position and control in suitable anterior cases. Clinical selection still depends on canal anatomy, obstruction location, access and visibility.

Compatibility: E4, E4D and E14

Gold Cura E4, E4D and E14 tips use the Woodpecker and EMS-type screw-in connection family. They are not generally interchangeable with DTE, Satelec or NSK-type handpieces, which commonly use the corresponding ED-family tip.

Compatibility warning: Compatibility depends on the exact scaler handpiece connection and thread, not only the scaler brand. Confirm the scaler and handpiece model before ordering.

E4 vs E4D vs E14: Which Tip Should You Choose?

Selection summary: Choose E4 for non-diamond obstruction management in the upper canal, E4D when controlled diamond-coated abrasive action is required, and E14 for separated-instrument or deeper-obstruction retrieval.

Read the detailed E4, E4D and E14 comparison and compatibility guide.

Professional Use and Safety

• Confirm the handpiece connection before fitting the tip.
• Follow the scaler and tip manufacturer’s recommended endodontic mode and power setting.
• Use dry mode only when required by the supplied instructions and clinical protocol.
• Maintain controlled access and visibility throughout use.
• Do not force the tip into curved, narrow or constricted canals.
• Avoid excessive axial or apical pressure.
• Follow the supplied instructions for use regarding single-use status, cleaning, disinfection, sterilisation or any permitted reprocessing.
• Do not use a bent, cracked, worn or damaged tip.

Delivery and Returns

• Estimated delivery: 4–5 working days.
• Returns: Eligible return requests must be raised within 24 hours of delivery, subject to Gold Cura’s return policy.
• Clinical-use restriction: Used, contaminated, opened hygiene-sensitive or sterilized products cannot be returned.

Frequently Asked Questions

What is an E4 ultrasonic endo tip?

E4 is a long, slender, non-diamond ultrasonic endodontic tip used during root canal retreatment to help remove root-filling obstructions and suitable foreign material.

What is the main use of the E4 tip?

Its principal use is assisting with the removal of root-filling material and suitable obstructions from the coronal or upper portion of a root canal during retreatment.

Is the E4 tip diamond coated?

No. E4 is the non-diamond version. E4D is the corresponding diamond-coated model.

Can E4 be used with Woodpecker scalers?

It is designed for Woodpecker-compatible screw-in ultrasonic handpieces. Confirm the exact handpiece model and thread before ordering.

Can E4 be used with EMS scalers?

It is designed for EMS-type screw-in handpiece connections, subject to verification of the specific scaler and handpiece model.

Can E4 be used with DTE, Satelec or NSK systems?

Those connection systems generally use an ED4-type tip rather than E4. Verify the equipment compatibility chart before purchase.

Does the E4 tip work in dry mode?

E4 product references commonly specify dry working mode. Follow the operating instructions supplied with the tip and ultrasonic scaler before clinical use.

What is the difference between E4 and E4D?

E4 is a non-diamond retreatment tip. E4D has a diamond-coated working surface when abrasive action is clinically required for suitable calcification, hardened deposits or defective filling material.

What is the difference between E4 and E14?

E4 is mainly positioned for suitable root-filling obstructions in the upper portion of the canal. E14 is a longer retrieval-style tip commonly selected for separated instruments and deeper obstructions.

Can E4 remove a broken endodontic file?

E4 may assist around selected visible foreign material, but it is not primarily positioned as a deep separated-file retrieval tip. Instrument retrieval is technique-sensitive and may require a dedicated retrieval tip such as E14.

What comes in the package?

The package contains one Gold Cura E4 ultrasonic endodontic tip.

Related Gold Cura Endodontic Products

• E4D diamond-coated ultrasonic endo tip
• E14 ultrasonic retrieval tip
• E3 ultrasonic endodontic tip
• E2 ultrasonic endodontic tip
• View all Gold Cura endodontic products

Professional-use dental instrument. Root canal retreatment and obstruction removal are technique-sensitive. Follow the supplied instructions for use and confirm compatibility before clinical application.
