Gold Cura
Gold Cura HW-3H Non-LED Scaler Handpiece – Woodpecker & EMS Compatible
Low stock
Couldn't load pickup availability

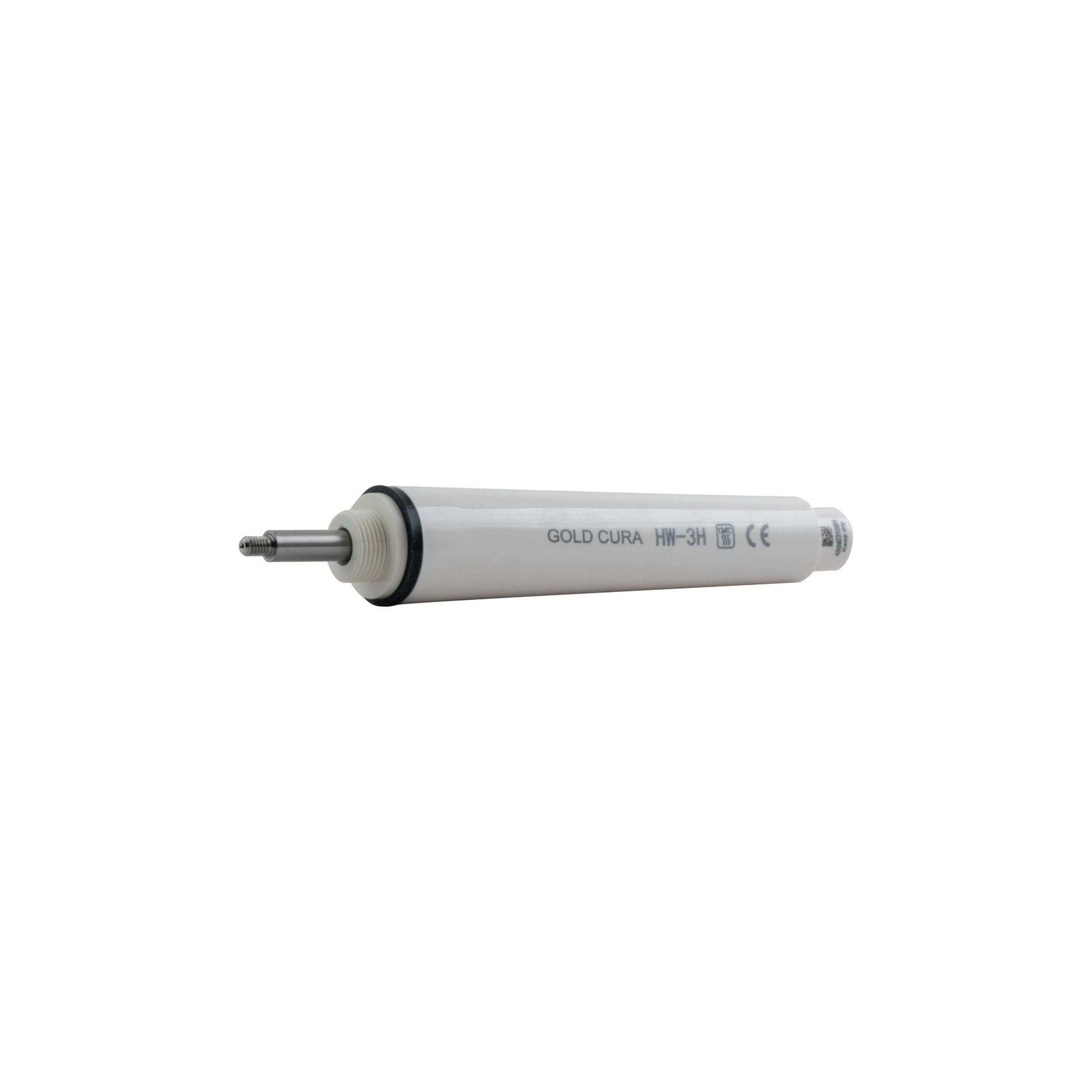

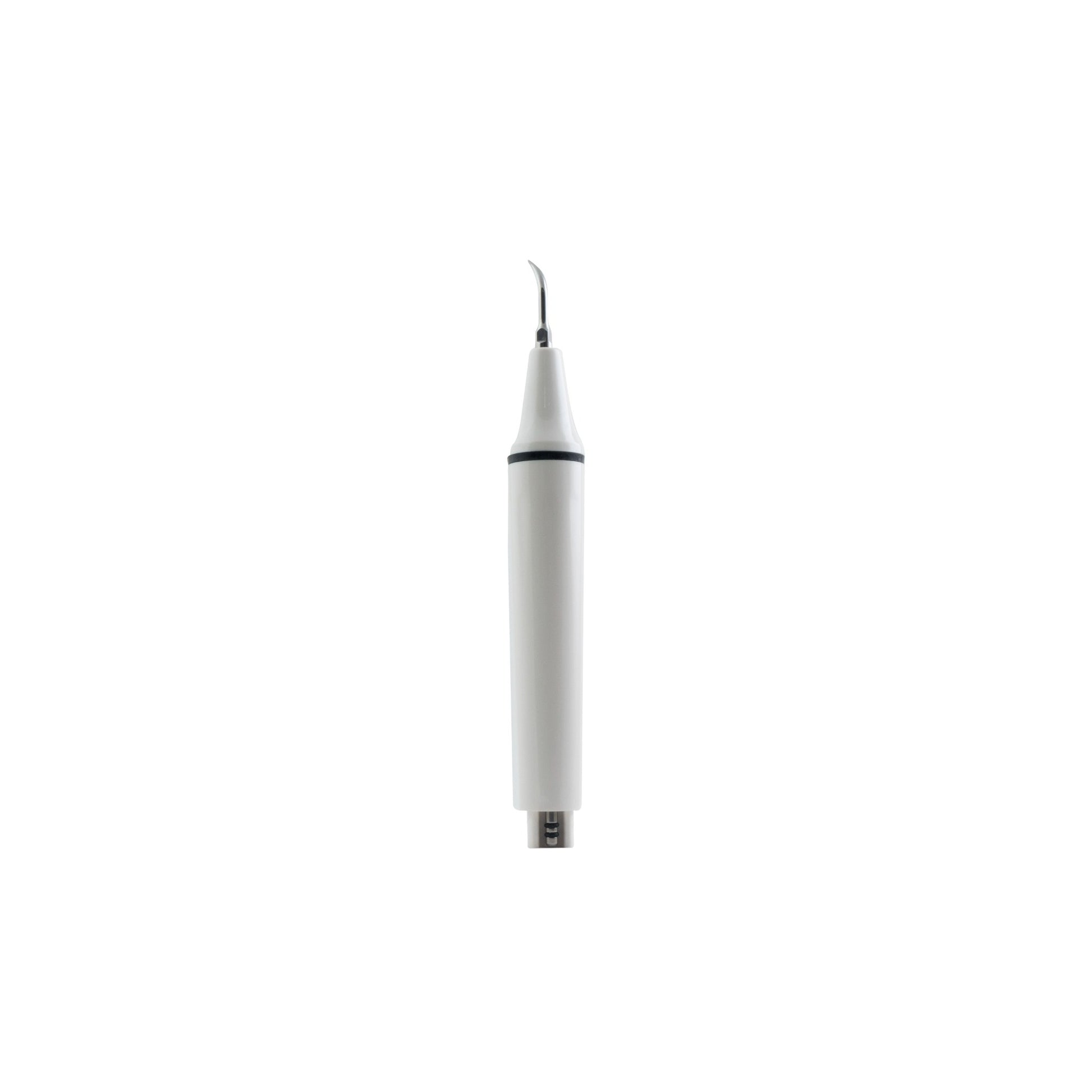

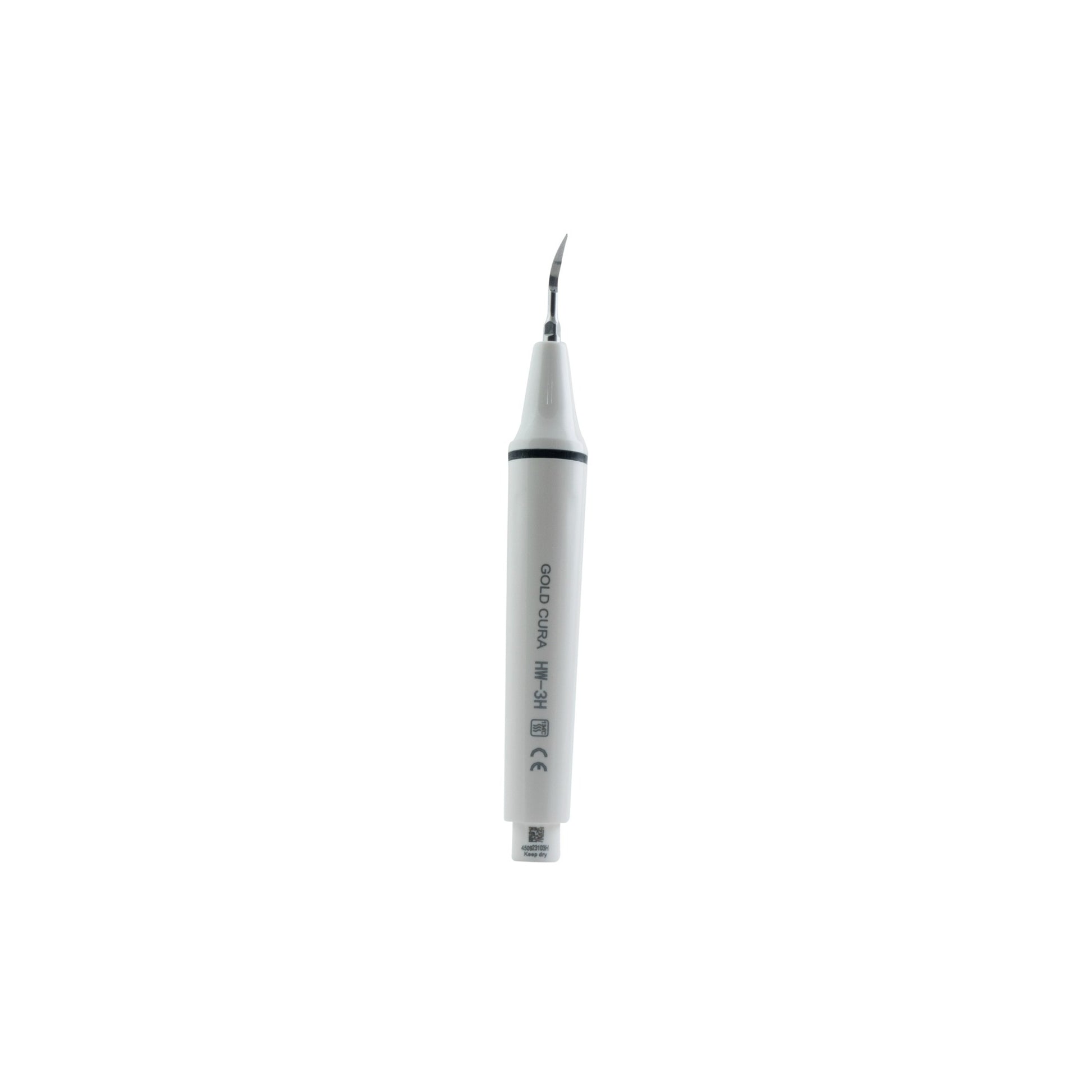

HW-3H Non-LED Ultrasonic Scaler Handpiece
Gold Cura HW-3H Non-LED Scaler Handpiece is a detachable piezo ultrasonic scaler handpiece intended as a compatible replacement or spare for selected Woodpecker UDS-series and EMS-type non-LED scaler systems.
This is a non-LED, non-optic, no-light model. It is associated with an EMS-type 3-hole connection and EMS-style scaler tips. Always match the scaler model, hose connector and illumination requirement before ordering.
Key Features
- Model: HW-3H
- Illumination: Non-LED / no light
- Connection family: EMS-type 3-hole fitting
- Typical compatibility: Selected Woodpecker UDS and EMS-type non-LED scaler units
- Tip family: Compatible EMS-style or Woodpecker EMS-compatible scaler tips approved for the unit
- Design: Detachable piezo ultrasonic handpiece
- Sterilization: Autoclavable up to 135°C according to the supplied reprocessing instructions
- Use: Professional dental use by trained practitioners
Important Compatibility Notice
Do not purchase by brand name alone. Woodpecker, EMS-style, DTE and Satelec-type scaler systems use different handpiece connections. Even two non-LED handpieces may have different fittings.
The HW-3H is not automatically interchangeable with the HW-5L, HD-7H or HD-7L. Compare the base of the existing handpiece and the scaler-hose connector with the product photographs. When uncertain, share photographs of the scaler model label, hose connector and existing handpiece base with Gold Cura.
Common Compatible Configurations
HW-3H handpieces are commonly associated with selected non-LED Woodpecker UDS configurations and compatible EMS-type scaler systems. Examples can include non-LED versions within the UDS-N2, UDS-A, UDS-E, UDS-K, UDS-L and UDS-P families. Production versions and hose connectors can differ, so the exact equipment manual and connector must be checked.
Not Suitable For
- LED or optic handpiece connections
- Units requiring electrical contacts for illumination
- Satelec/DTE-type HD-7H or HD-7L connections
- EMS-type LED HW-5L connections unless the equipment manufacturer confirms interchangeability
- Magnetostrictive ultrasonic scaler systems
Product Specifications
| Specification | Details |
|---|---|
| Product | Detachable ultrasonic scaler handpiece |
| Brand | Gold Cura |
| Model | HW-3H |
| Light | Non-LED / no light |
| Technology | Piezo ultrasonic |
| Connection | EMS-type 3-hole |
| Tip family | EMS-style / Woodpecker EMS-compatible |
| Design | Detachable |
| Sterilization | Autoclavable up to 135°C as instructed |
Compare All Four Gold Cura Scaler Handpieces
| Model | Light | Connection and Tip Family | Typical Compatible System | Choose This Model When |
|---|---|---|---|---|
| HW-3H | Non-LED | EMS-type 3-hole; EMS-style tips | Selected Woodpecker UDS and EMS-type non-LED units | You need a non-light EMS-type handpiece |
| HW-5L | LED | EMS-type LED/optic; EMS-style tips | Selected Woodpecker UDS LED and EMS-type LED units | You need illumination with an EMS-type LED connection |
| HD-7H | Non-LED | Satelec/DTE-type; Satelec/DTE-style tips | Selected DTE and Satelec-type non-LED units | You need a non-light Satelec/DTE-type handpiece |
| HD-7L | LED | Satelec/DTE-type LED; Satelec/DTE-style tips | Selected DTE LED and Satelec-type LED units | You need illumination with a Satelec/DTE-type LED connection |
Important: Light status alone does not determine compatibility. HW-3H and HD-7H are both non-LED but use different connection families. HW-5L and HD-7L are both LED but are not automatically interchangeable.
How to Confirm Compatibility
- Confirm that the existing handpiece is non-LED.
- Check the scaler model and equipment manual.

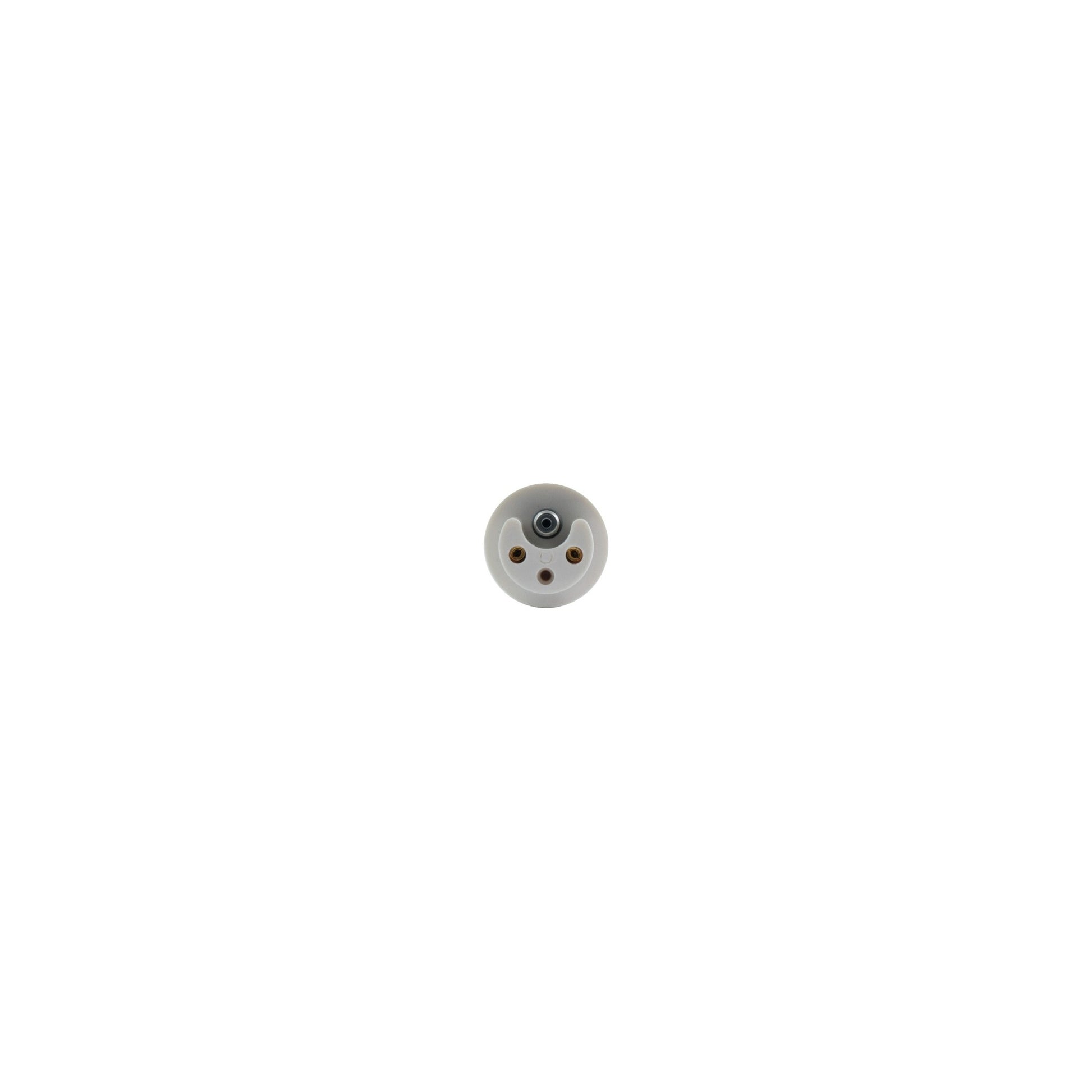

- Inspect the hose connector and verify an EMS-type 3-hole fitting.
- Confirm that the scaler uses EMS-style compatible tips.
- Compare the existing handpiece base with the product photographs.
- Send Gold Cura connector photographs when uncertain.
Directions for Use and Care
- Switch off the scaler before connecting or removing the handpiece.
- Inspect the connector, O-rings, hose, handpiece body and scaler tip.
- Align the matching connector and attach without forcing it.
- Install an approved compatible tip using the correct torque wrench.
- Confirm adequate water flow before treatment.
- After use, remove the tip and handpiece according to the equipment instructions.
- Clean, inspect, package and sterilize according to the supplied reprocessing instructions.
- Allow the handpiece to cool and dry fully before storage or reconnection.
Stop use if the handpiece is cracked, leaking, unusually hot, producing irregular vibration or unable to maintain water flow.
Frequently Asked Questions
Is the HW-3H an LED scaler handpiece?
No. HW-3H is a non-LED, no-light model.
How is HW-3H different from HW-5L?
Both belong to the EMS-type family, but HW-3H is non-LED while HW-5L is an LED/optic model. Their hose connections may differ and should not be assumed interchangeable.
How is HW-3H different from HD-7H?
Both are non-LED. HW-3H uses the EMS-type family, while HD-7H uses the Satelec/DTE-type family.
How is HW-3H different from HD-7L?
HW-3H is a non-LED EMS-type model. HD-7L is an LED Satelec/DTE-type model. They differ in both illumination and connector family.
Can HW-3H be used on an LED scaler?
Only when the equipment manufacturer specifically confirms support for this non-LED handpiece. Do not assume compatibility from the brand name.
Which scaler tips should be used?
Use only EMS-style or Woodpecker EMS-compatible tips approved for the scaler and handpiece.
Is it detachable and autoclavable?
Yes. It is detachable and can be autoclaved up to 135°C when processed according to the supplied instructions.
Is this an original Woodpecker or EMS handpiece?
No. It is a Gold Cura compatible replacement. Compatibility references identify the connection family and do not imply manufacture or endorsement by Woodpecker or EMS.
