Gold Cura Extra-Fine Finishing Diamond Burs FG – EF Series, Pack of 5
In stock
Couldn't load pickup availability
Direct answer: Gold Cura Extra-Fine Finishing Diamond Burs FG are precision finishing burs used after standard or fine diamond preparation to refine margins, smooth axial and occlusal surfaces, correct small contour irregularities and prepare restorations or tooth surfaces for the final material-specific polishing sequence. Choose from 10 EF profiles. Each order contains 5 identical burs of the selected code.
Extra-Fine Diamond Burs FG: Key Facts
| Bur category | Extra-fine / ultra-fine finishing dental diamond burs |
|---|---|
| Available codes | EX-21EF, FO-29EF, TC-11EF, TF-11EF, TF-12EF, TR-11EF, TR-12EF, TR-13EF, TR-21EF and TR-25EF |
| Shape families | Pear, flame/ogival, needle/taper-conical, taper flat-end and taper round-end |
| Shank type | FG / friction grip |
| Compatible handpiece | Compatible high-speed friction-grip dental handpiece |
| Pack size | 5 identical burs of the selected code |
| Primary role | Final diamond finishing, margin refinement and surface smoothing before the definitive polishing sequence |
| Intended user | Trained dental professionals |
What Does EF Mean in Dental Diamond Burs?
EF commonly denotes an extra-fine abrasive grade. Extra-fine diamond burs are intended for controlled finishing rather than heavy reduction. Comparable manufacturer and distributor catalogues commonly identify EF instruments with a yellow colour band and an approximately 20–30 µm abrasive range, but the exact Gold Cura grit and band specification should be confirmed from the supplied packaging or product specification.
Extra-Fine Finishing Is Not the Same as Final Polishing
An extra-fine diamond bur can reduce scratches left by coarser instruments and improve surface and margin refinement. It generally does not replace the complete final polishing protocol. After extra-fine diamond finishing, continue with the restorative-material manufacturer’s recommended rubber polishers, discs, cups, brushes or polishing paste when required.
When to Use Each Extra-Fine Bur Shape and Size
Important: first choose the head geometry required by the surface or margin. The number does not form one universal small-to-large scale across different prefixes. Compare sizes mainly within the same shape family.
| Code | Shape and relative profile | When to use it |
|---|---|---|

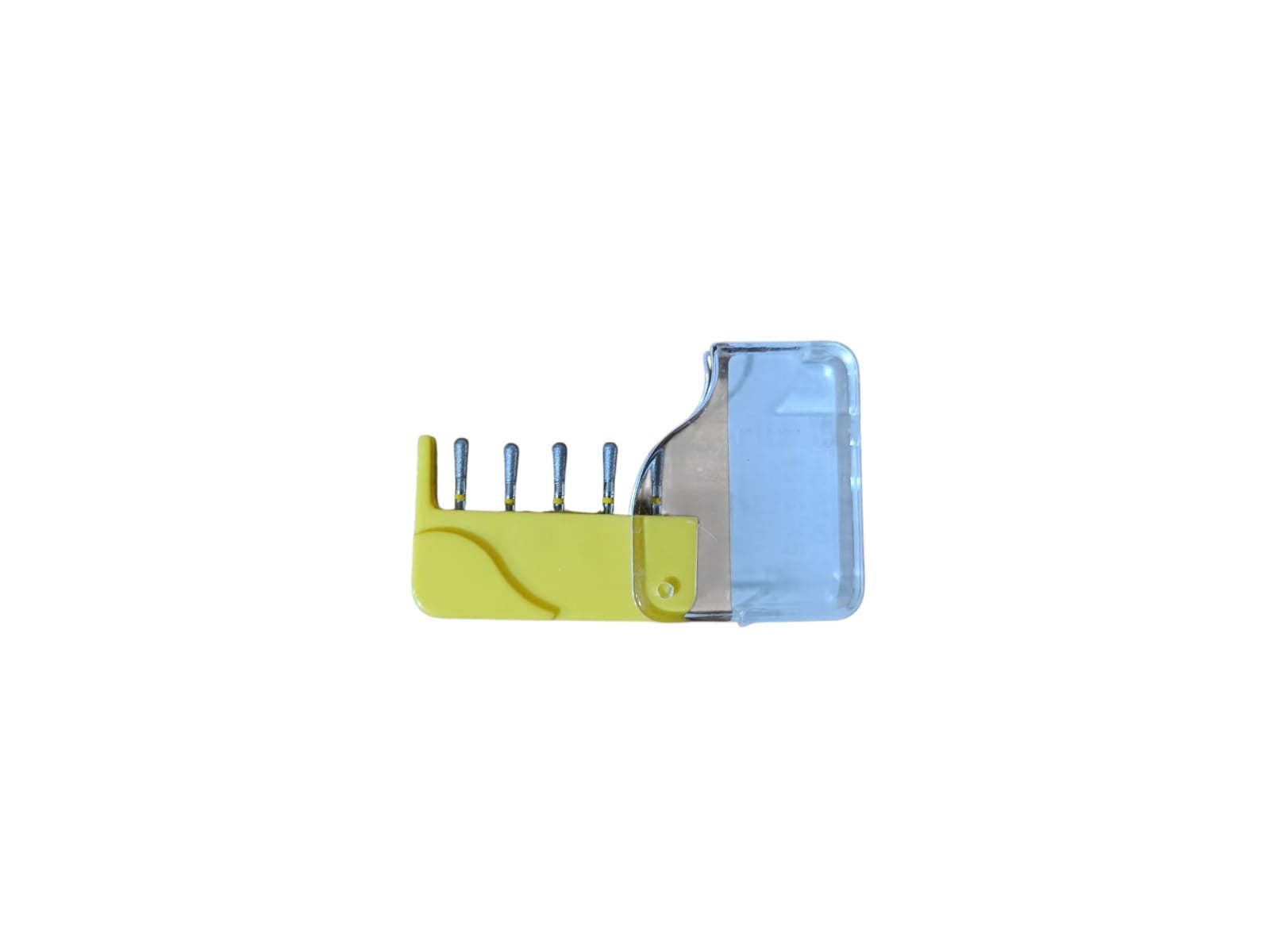

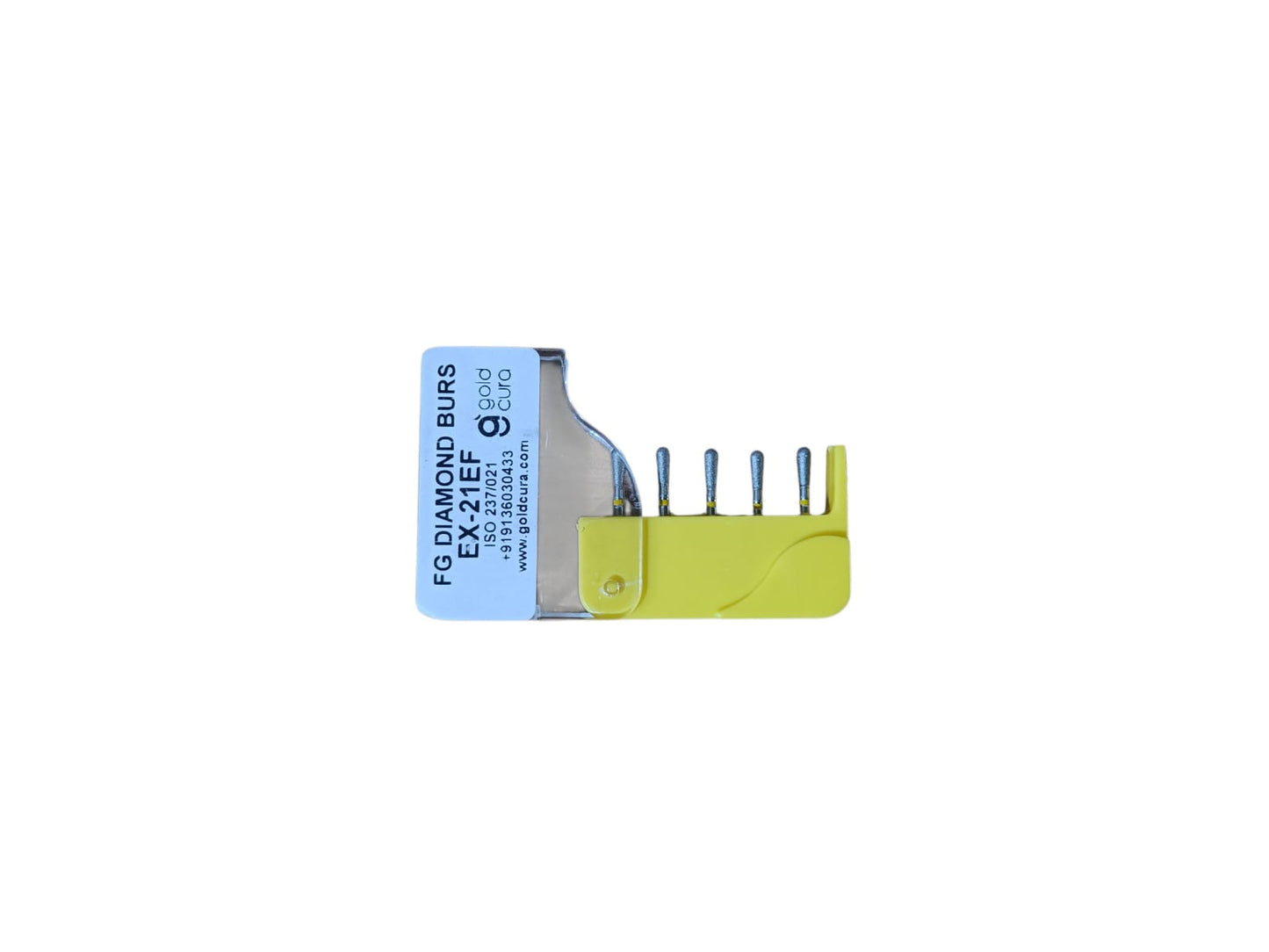

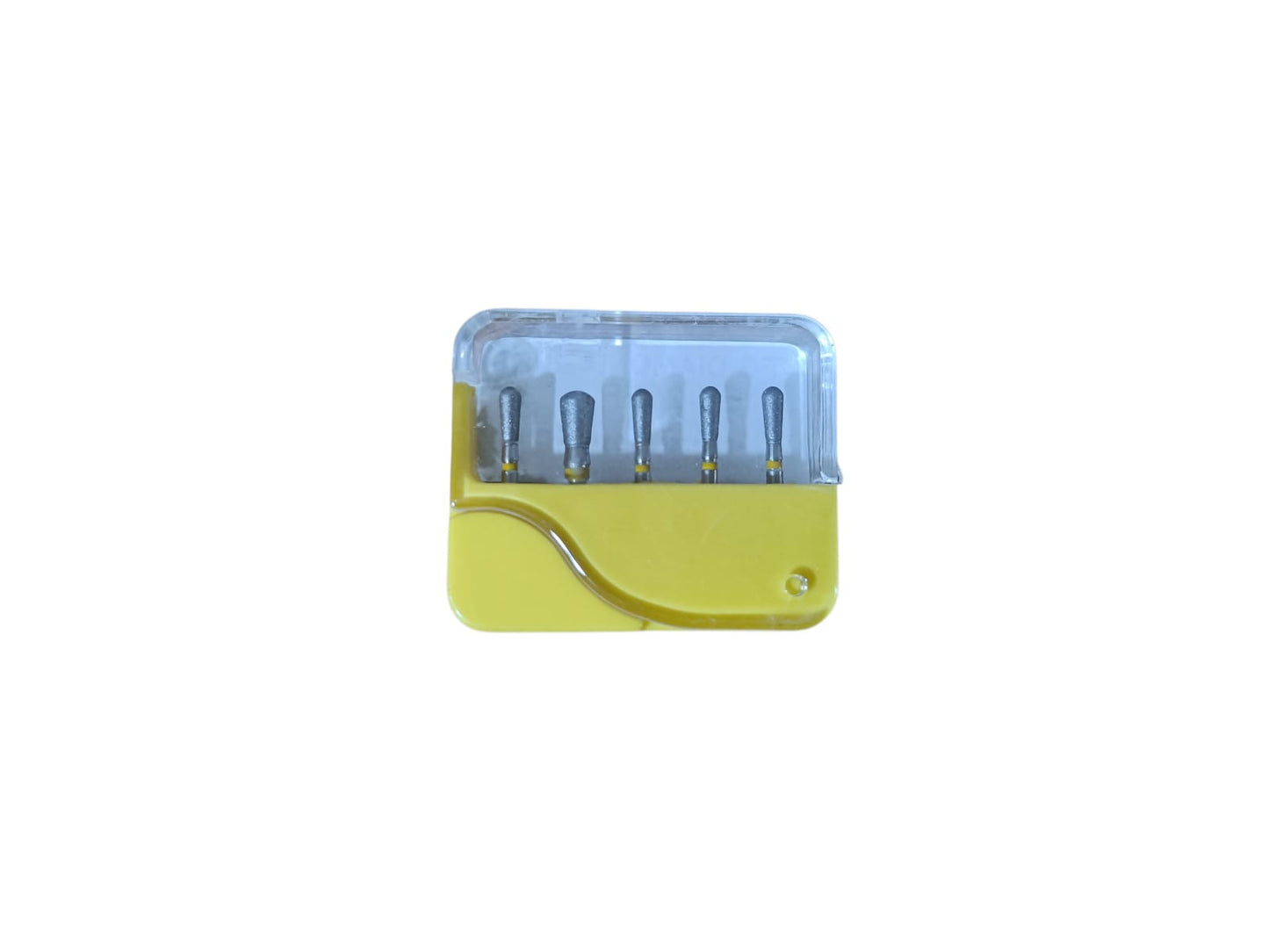

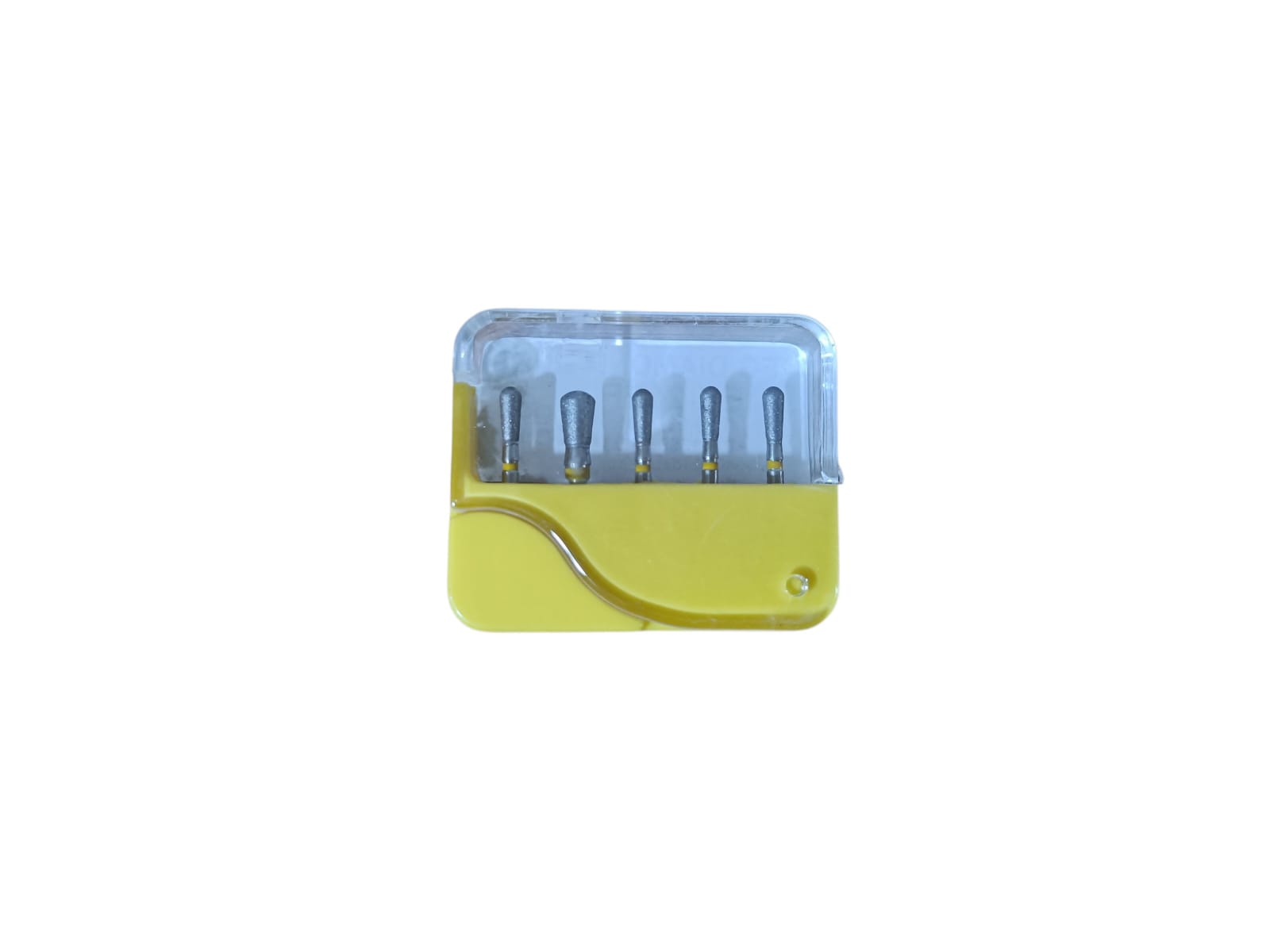

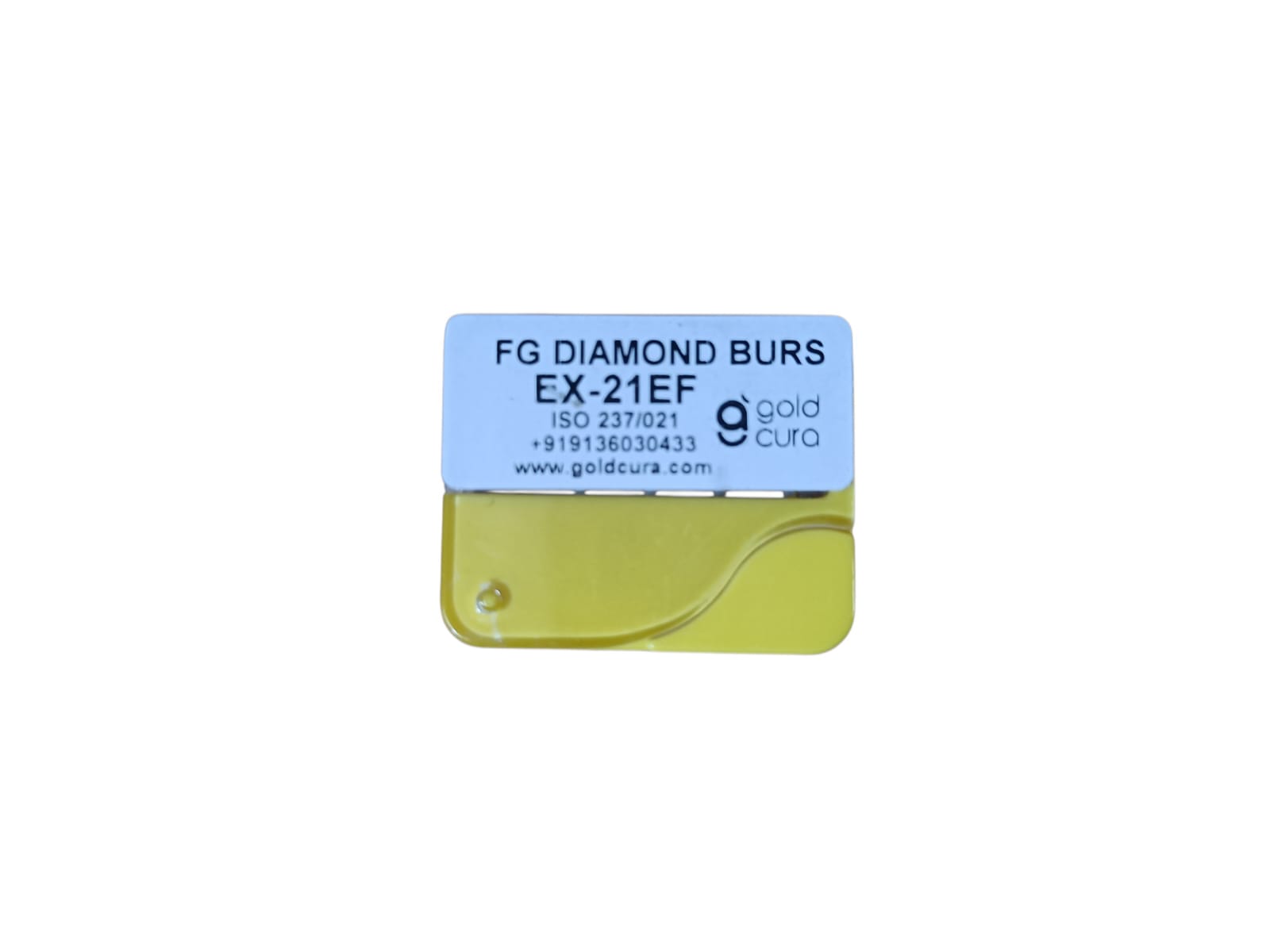

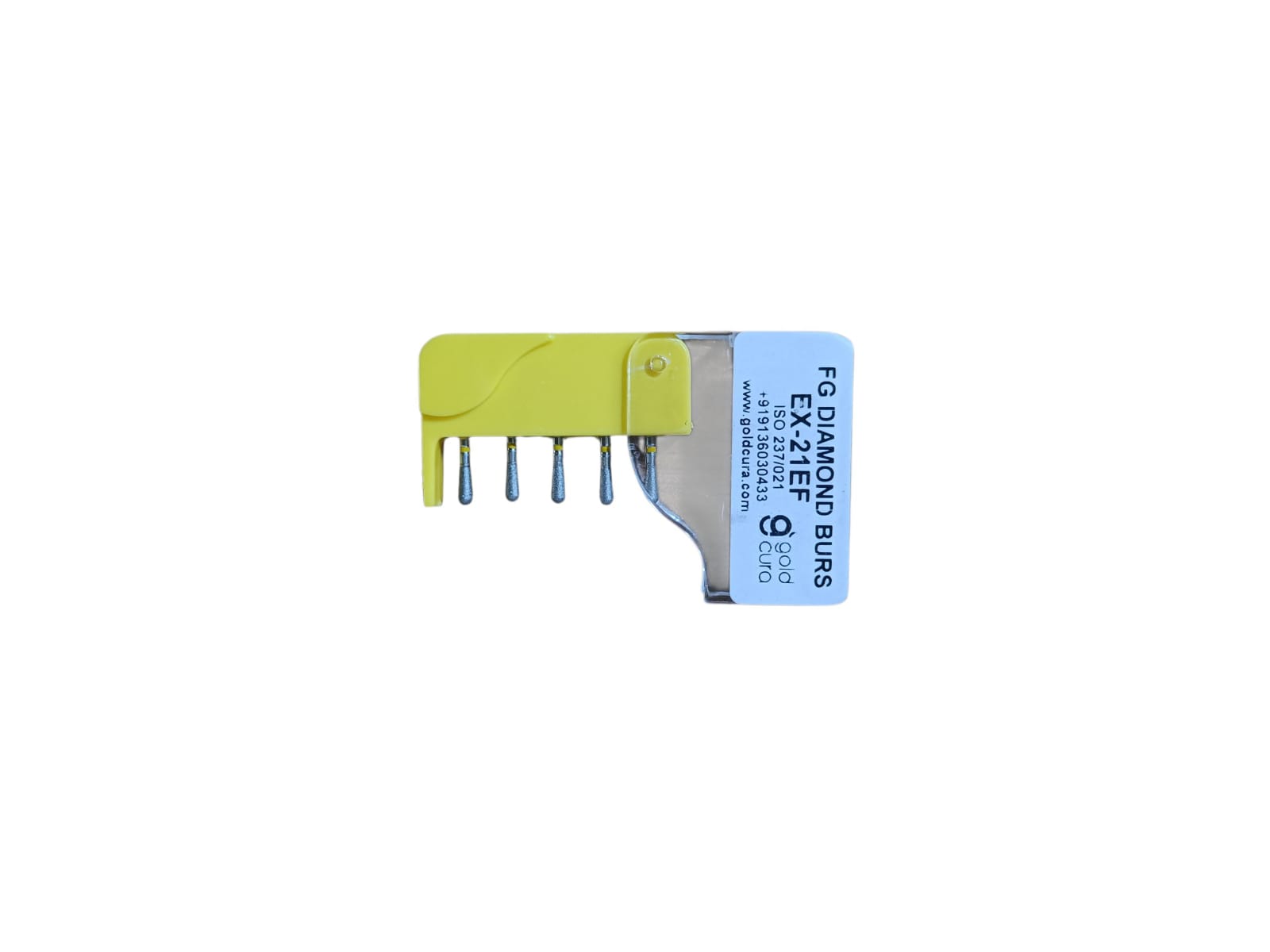

| EX-21EF | Pear-shaped extra-fine profile | Choose for final smoothing of pear-shaped cavity preparations, occlusal rest or access contours, rounded internal walls and selected inlay, onlay or CAD/CAM preparation refinement where a pear profile follows the existing anatomy. |

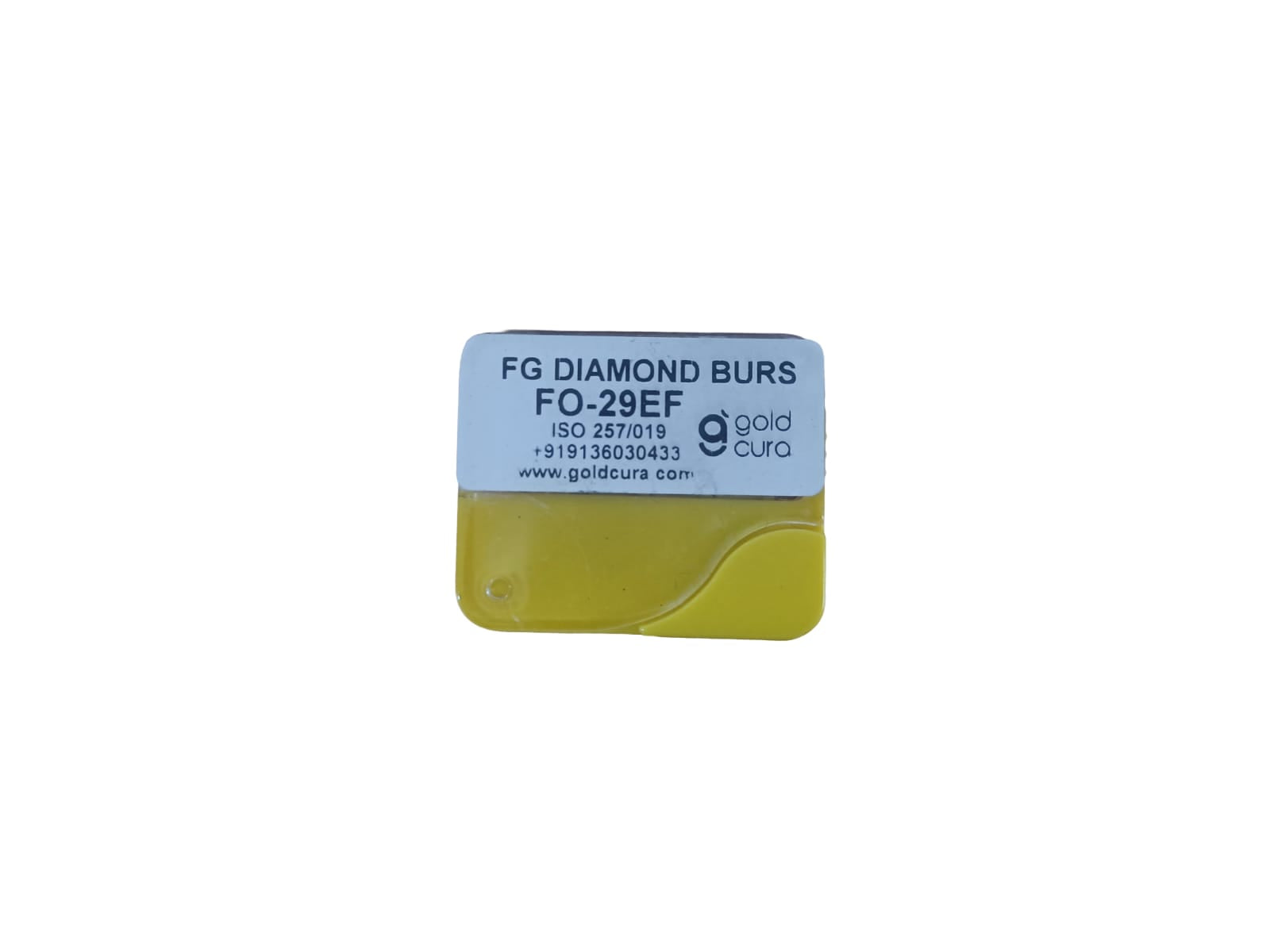

| FO-29EF | Flame / ogival extra-fine profile | Choose for curved and convex surfaces, delicate margin finishing, interproximal and lingual contour refinement, enameloplasty and final smoothing where a flame-shaped instrument provides tangential access. |

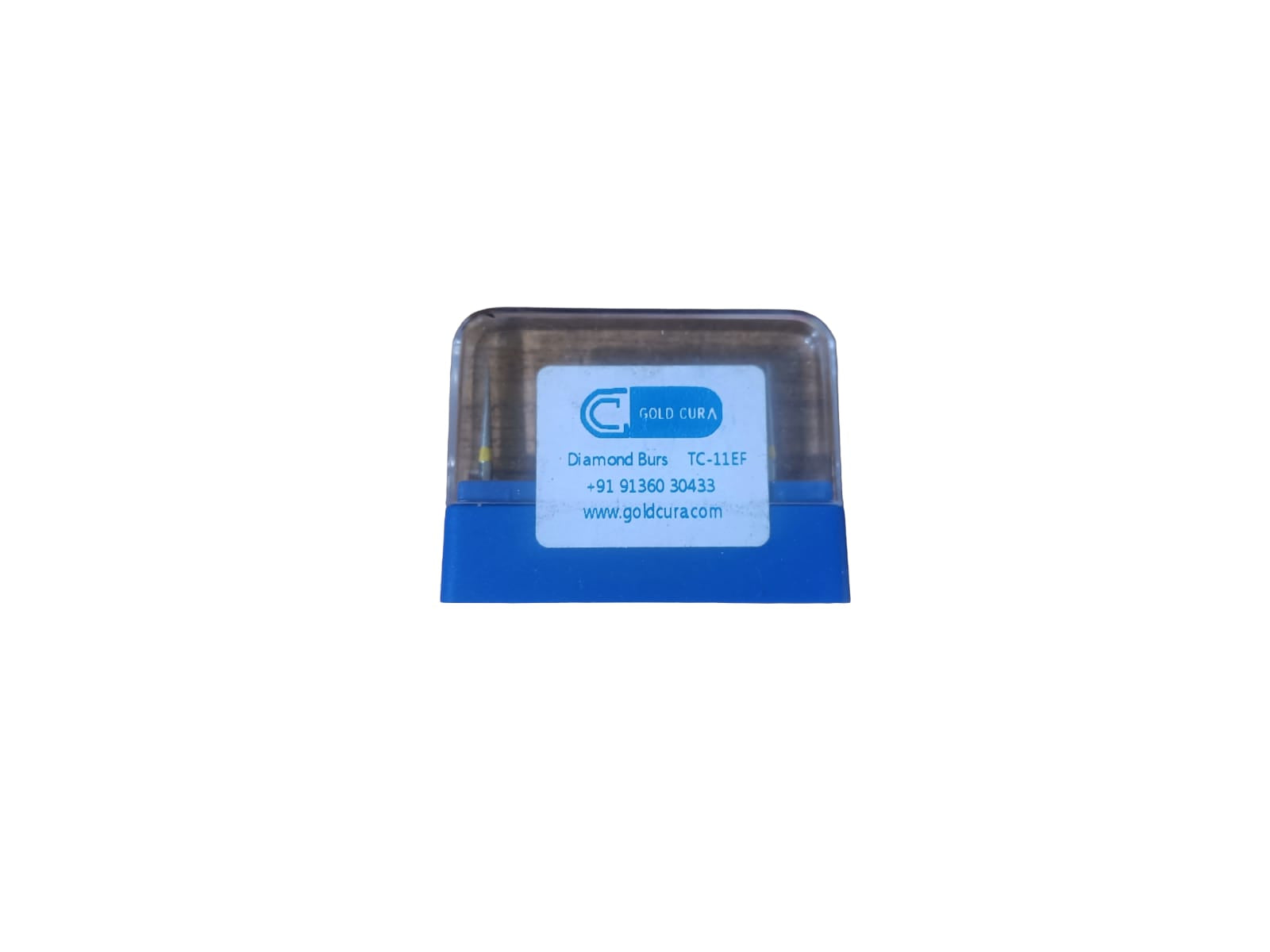

| TC-11EF | Fine needle / taper-conical profile | Choose for narrow interproximal detail, proximal-surface refinement, conservative contact-area contouring and precise access to grooves or restricted areas. It is a finishing instrument, not a bulk interproximal-reduction bur. |

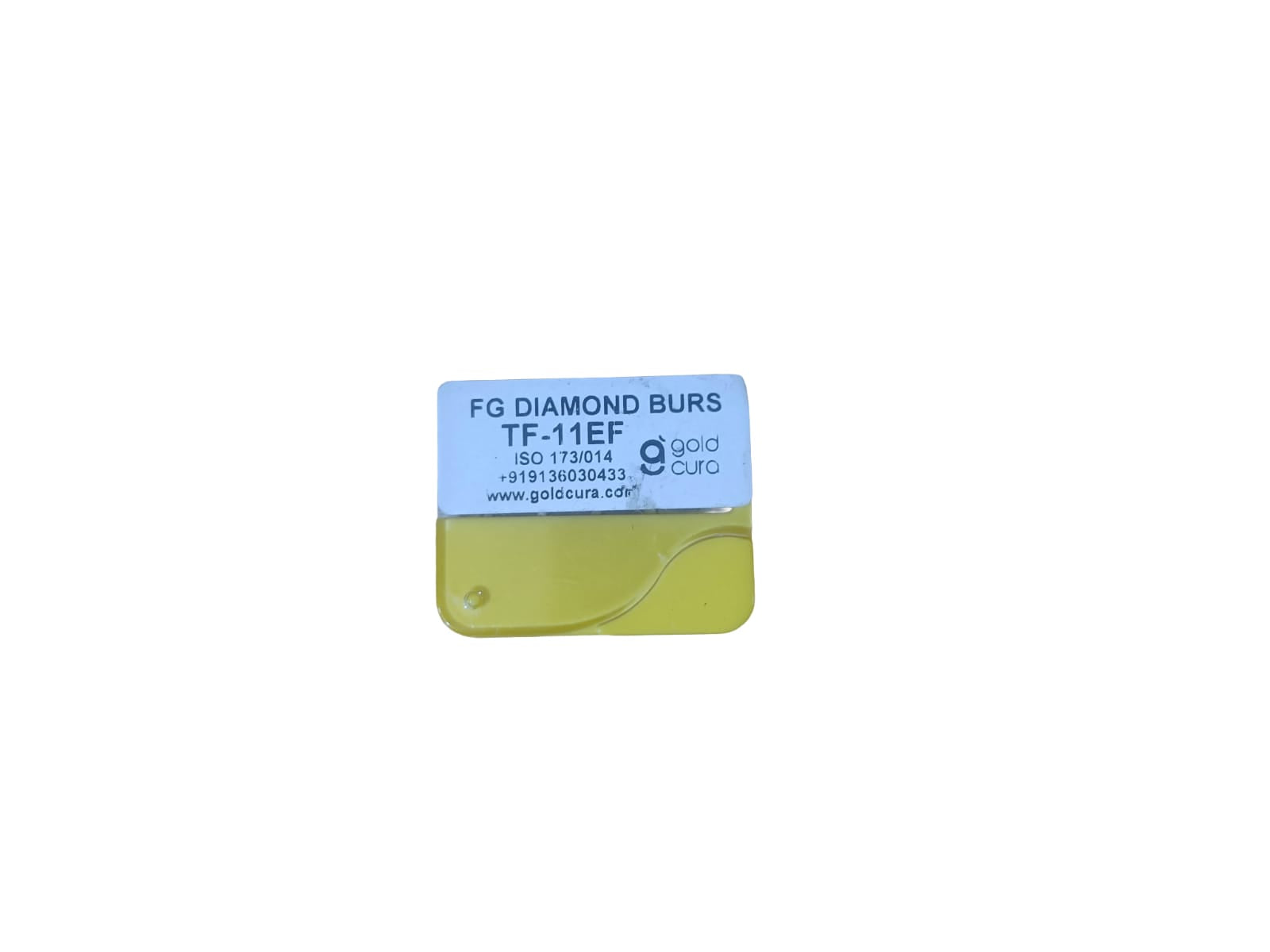

| TF-11EF | Narrow taper flat-end profile | Choose for conservative finishing of tapered walls, narrow inlay preparations, proximal boxes and flat-ended margins where a slimmer profile limits unnecessary removal. |
| TF-12EF | Medium-width taper flat-end profile | Choose for broader inlay, onlay and crown-preparation finishing, wider proximal boxes and flat-ended margin refinement when TF-11EF is too narrow. |

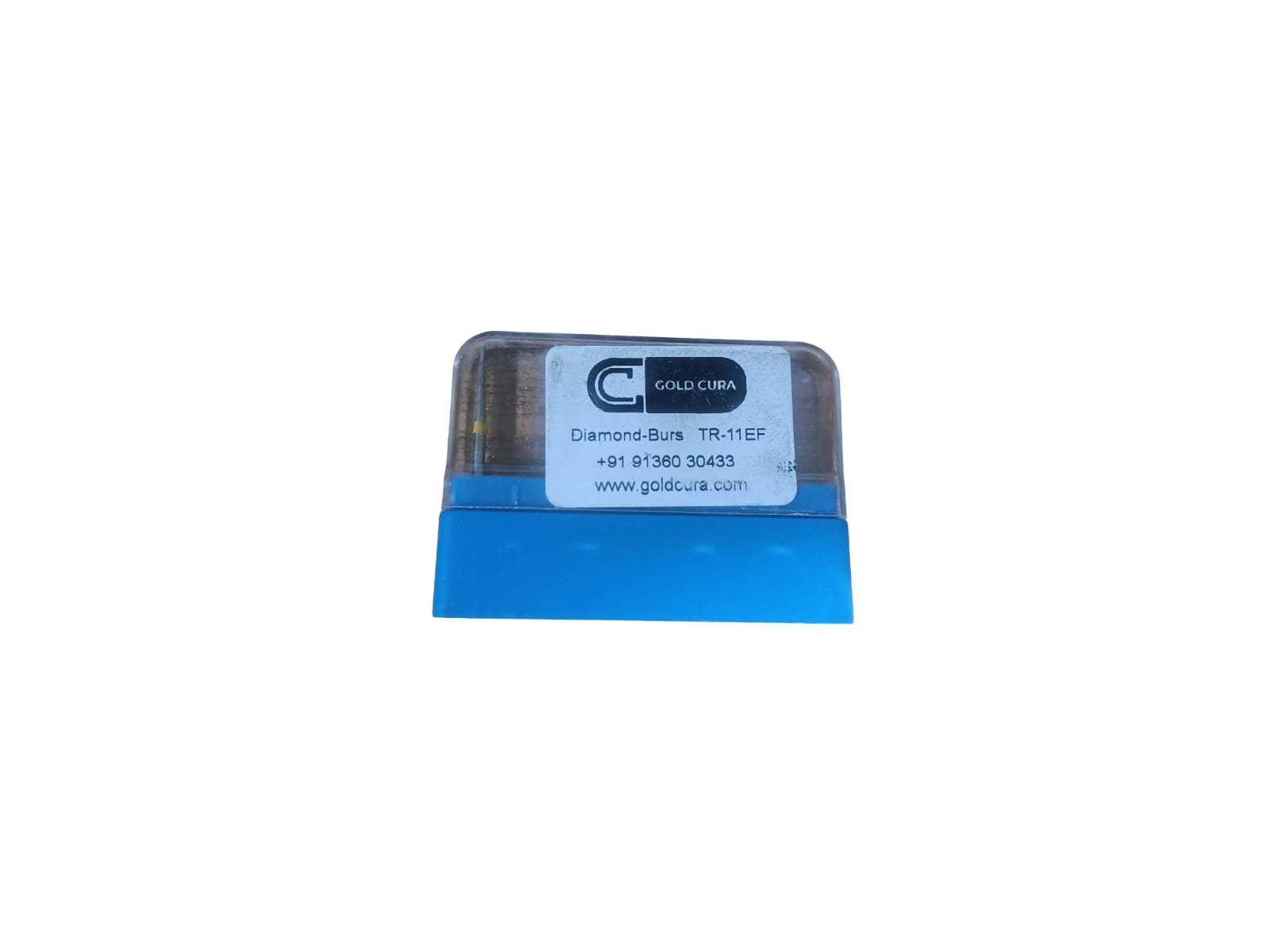

| TR-11EF | Narrow, long taper round-end profile | Choose for conservative axial-wall finishing, narrow preparations, rounded internal line angles and fine chamfer-style margin refinement on smaller teeth or restricted surfaces. |

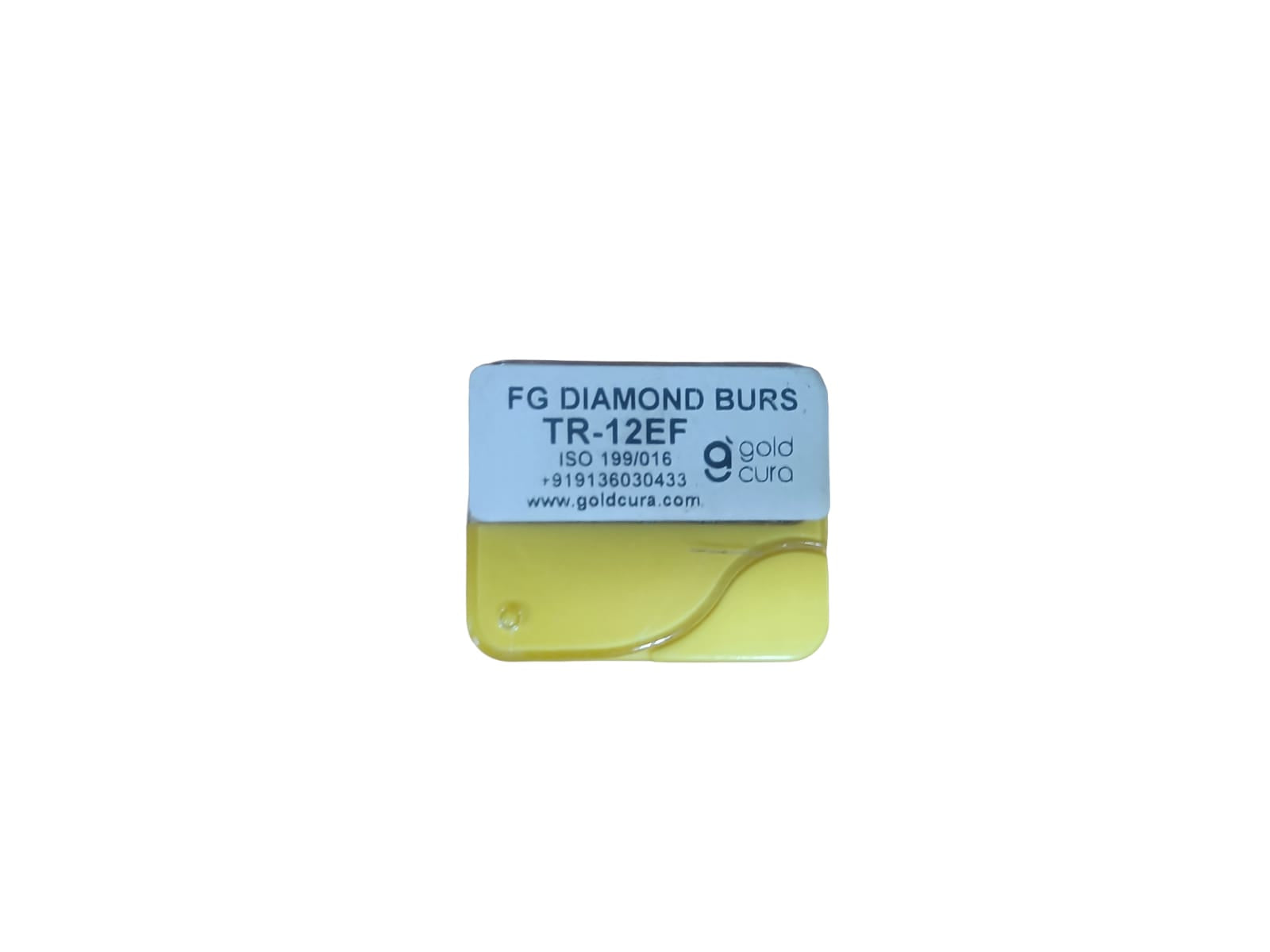

| TR-12EF | Medium, long taper round-end profile | Choose as the general-purpose option for crown, inlay and onlay finishing, axial-surface smoothing and rounded margin refinement when balanced access and working width are required. |

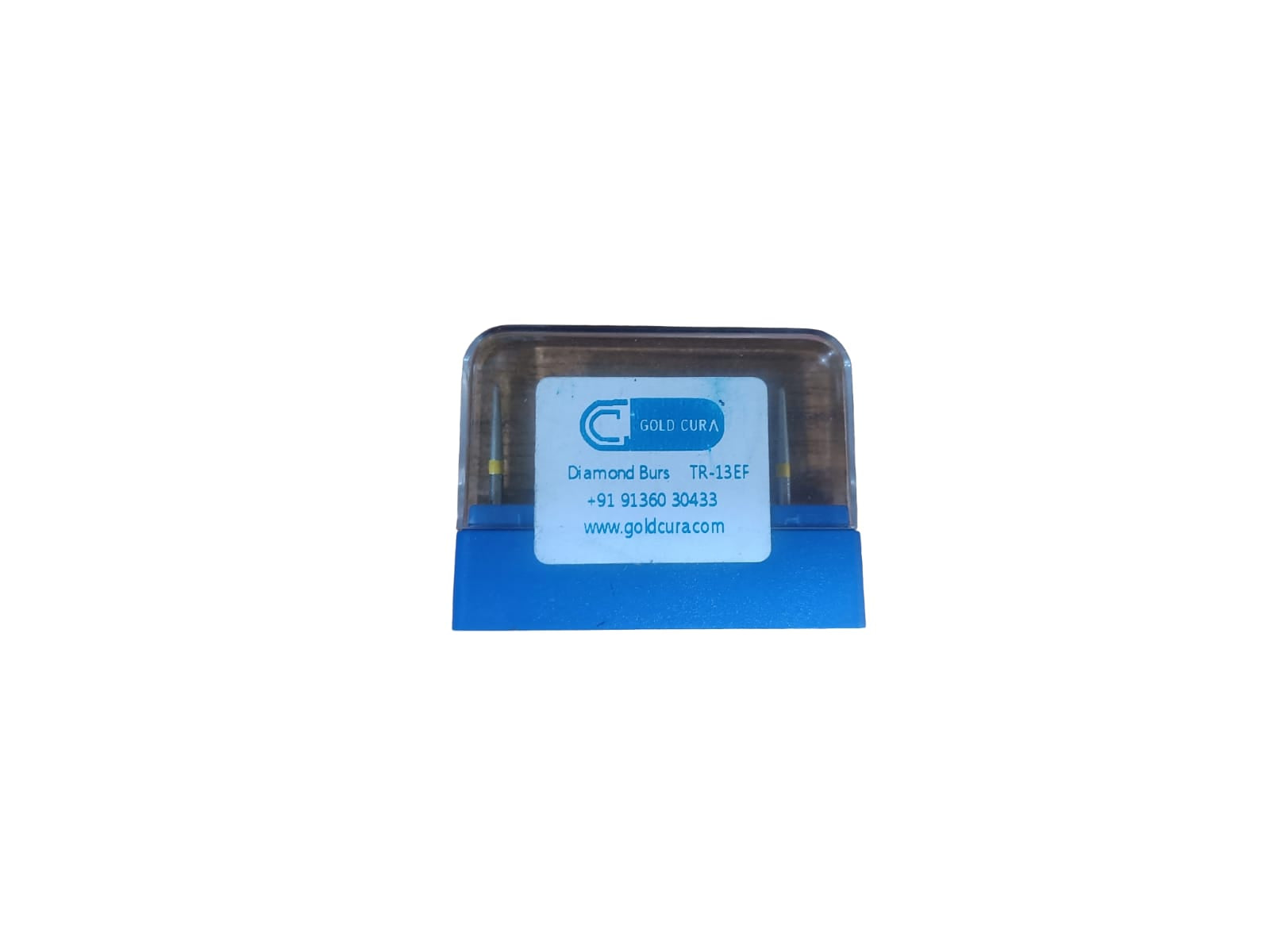

| TR-13EF | Wider taper round-end profile | Choose for broader posterior preparations, larger teeth and wider axial or CAD/CAM preparation surfaces where more working width is required than TR-11EF or TR-12EF. |

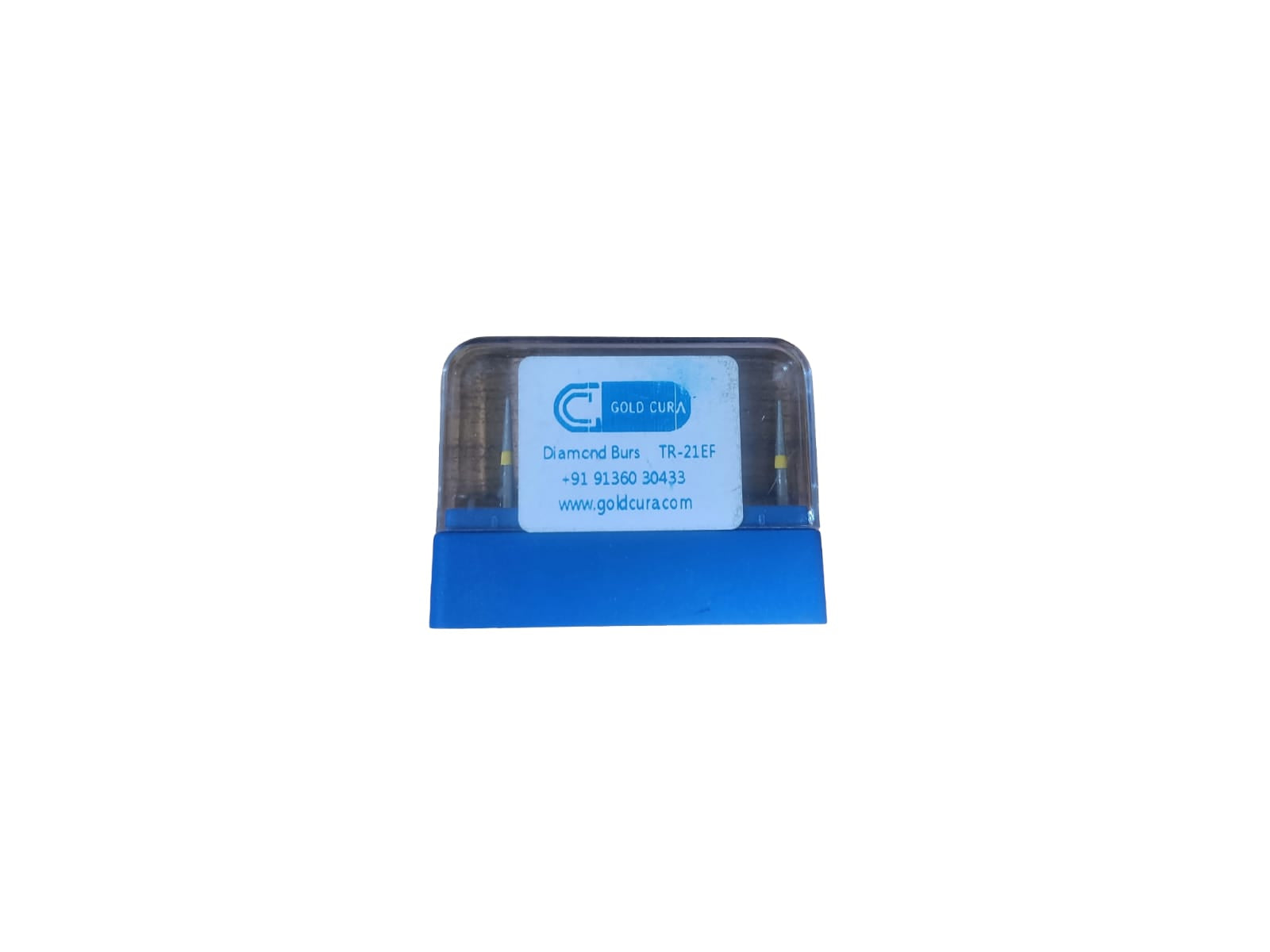

| TR-21EF | Compact taper round-end profile with a shorter working head | Choose for short axial walls, shallower preparations, posterior areas and restricted access where a compact working head improves control and helps avoid extending the preparation unnecessarily. |

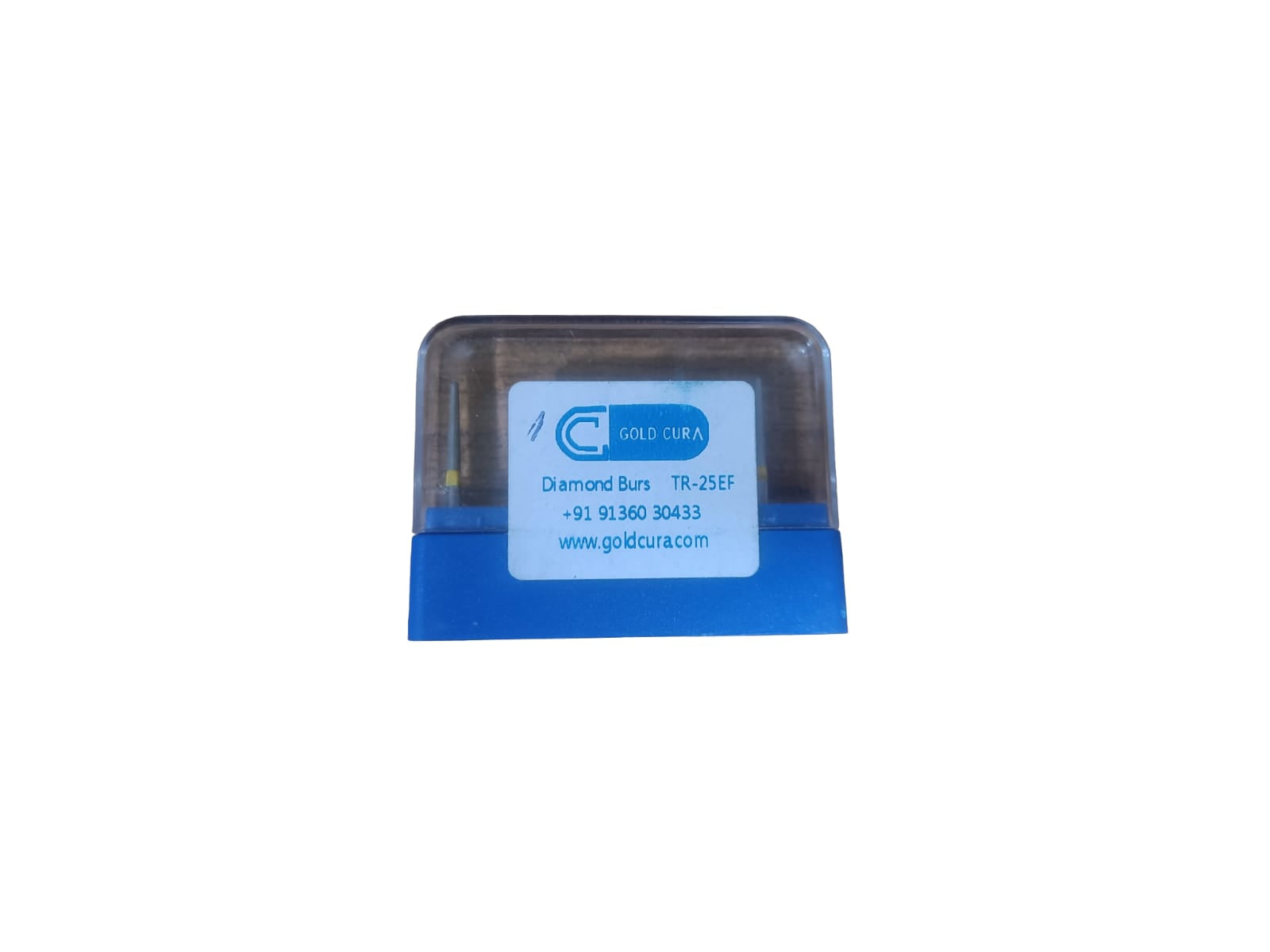

| TR-25EF | Long, slender taper round-end profile | Choose for elongated axial walls, narrow proximal access, long preparation surfaces and fine margin or contour refinement where reach and a slender working profile are useful. |
Simple selection rule: match the bur shape to the surface, margin and preparation geometry, then choose the smallest profile that can finish the area evenly without altering the intended preparation.
Shape Guide: Which EF Prefix Should You Choose?
| Prefix | Head shape | Typical finishing role |
|---|---|---|
| EX | Pear | Occlusal, internal and pear-shaped preparation contours |
| FO | Flame / ogival | Curved margins, convex surfaces and interproximal contouring |
| TC | Needle / taper-conical | Narrow proximal detail, grooves and restricted-access finishing |
| TF | Taper flat-end | Tapered walls, flat-ended margins and proximal-box refinement |
| TR | Taper round-end | Axial walls, rounded internal line angles and chamfer-style margins |
Standard, Fine, Extra-Fine and Final Polishing: What Is the Difference?
| Stage | Primary purpose | Typical position in workflow |
|---|---|---|
| Standard or coarse diamond | Initial preparation and material reduction | Early shaping stage |
| Fine diamond | Contour correction and preparation refinement | After initial shaping |
| Extra-fine diamond | Final diamond finishing, margin refinement and scratch reduction | Before definitive polishing |
| Rubber polisher / disc / paste | Material-specific gloss and final polish | Final polishing stage where indicated |
How to Choose the Correct Extra-Fine Diamond Bur
- Complete the major preparation first. Do not use an extra-fine bur for substantial tooth or restorative-material reduction.
- Identify the surface or margin. Select pear, flame, needle, flat-end taper or round-end taper according to the existing geometry.
- Choose the minimum suitable size. A narrower instrument improves conservation and access; a wider profile can finish broader surfaces more evenly.
- Match the end geometry. Use TF for a flat-ended preparation form and TR for rounded internal transitions or chamfer-style margins.
- Use light, controlled contact. Extra-fine instruments are designed for finishing; excessive pressure can generate heat or alter the preparation.
- Use appropriate cooling and speed. Follow the supplied instructions and the clinical requirements of the material being finished.
- Continue to material-specific polishing. Use the appropriate polishing system after diamond finishing when required.
- Inspect the instrument before use. Do not use a bur that is bent, damaged, corroded, worn or does not seat securely.
Clinical Applications
- Final crown-preparation and finish-line refinement
- Inlay and onlay preparation finishing
- Veneer and anterior preparation refinement where the selected profile is appropriate
- Axial, occlusal, lingual and interproximal surface smoothing
- Composite and restorative contour refinement according to material-specific guidance
- CAD/CAM and ceramic preparation refinement according to clinical judgement
- Removal of small scratches and irregularities left by preceding diamond instruments
- Preparation for the final rubber-polisher, disc, cup, brush or paste sequence
Grit, Dimensions, Speed and Processing Guidance
The EF suffix indicates an extra-fine finishing category, but exact grit, head diameter, working length, colour band, maximum speed, sterilisation cycle and reuse limit can vary between manufacturers. Do not treat another brand’s catalogue dimensions as Gold Cura specifications. Confirm these details from the Gold Cura packaging, supplier specification or instructions supplied with the product.
- Use suitable water cooling, light pressure and intermittent contact.
- Follow the restorative-material manufacturer’s finishing and polishing sequence.
- Follow the supplied cleaning, disinfection, sterilisation, reuse and replacement instructions.
- Replace a bur that is damaged, bent, corroded, visibly worn or no longer finishes efficiently.
- Use only by trained dental professionals.
Frequently Asked Questions
What are extra-fine diamond burs used for?
They are used for final diamond finishing, margin refinement, contour correction and surface smoothing after the major preparation has been completed.
What does EF mean?
EF commonly means extra fine. It describes the abrasive finishing category, while the prefix identifies the head shape.
Are extra-fine diamond burs the same as dental polishers?
No. They help refine and smooth a surface before the final polishing stage. A material-specific rubber polisher, disc, cup, brush or paste may still be required.
How many burs are included?
Each pack contains five identical burs of the selected code.
Is this a mixed pack?
No. Select one code, and the pack contains five burs of that selected profile.
Which bur is used for pear-shaped and occlusal contours?
EX-21EF is the pear-shaped option for final smoothing of corresponding occlusal, cavity and internal preparation contours.
Which bur is used for curved margins and convex surfaces?
FO-29EF is the flame or ogival option for curved margins, convex surfaces, interproximal contouring and delicate final finishing.
Which bur is used for narrow interproximal detail?
TC-11EF is the needle or taper-conical option for precise proximal detail, grooves and restricted-access finishing.
What is the difference between TF-11EF and TF-12EF?
Both are taper flat-end burs. TF-11EF is the narrower option for conservative finishing, while TF-12EF provides more width for broader walls, boxes and margins.
What is the difference between TR-11EF, TR-12EF and TR-13EF?
They are long taper round-end profiles that progress from narrow to wider working widths. Use TR-11EF conservatively, TR-12EF for general-purpose finishing and TR-13EF for broader surfaces.
When should TR-21EF be used?
TR-21EF has a compact working profile suited to short axial walls, shallower preparations, posterior access and restricted spaces.
When should TR-25EF be used?
TR-25EF is a long, slender taper round-end option for elongated axial walls, narrow proximal access and extended preparation surfaces.
Which handpiece is required?
These are FG or friction-grip burs for a compatible high-speed dental handpiece. Confirm secure seating before use.
Can extra-fine diamond burs be sterilised and reused?
Follow the cleaning, disinfection, sterilisation, reuse and replacement instructions supplied with the product. Do not assume a cycle or reuse limit that is not stated in those instructions.
