Gold Cura
Gold Cura Fine Finishing Diamond Burs FG – F Series, Pack of 5
In stock
Couldn't load pickup availability
Direct answer: Gold Cura Fine Finishing Diamond Burs FG are precision friction-grip dental burs used after primary tooth or restorative preparation to refine margins, smooth axial and occlusal surfaces, correct small contour irregularities and prepare the surface for extra-fine finishing or the final material-specific polishing sequence. Choose from 8 F-series profiles. Each order contains 5 identical burs of the selected code.
Fine Diamond Burs FG: Key Facts
| Bur category | Fine finishing dental diamond burs |
|---|---|
| Available codes | EX-18F, EX-21F, FO-21F, SR-14F, TR-11F, TR-13F, TR-25F and TR-26F |
| Shape families | End-cutting, pear, flame/ogival, straight round-end and taper round-end |
| Shank type | FG / friction grip |
| Compatible handpiece | Compatible high-speed friction-grip dental handpiece |
| Pack size | 5 identical burs of the selected code |
| Primary role | Preparation refinement, margin definition, contour correction and surface smoothing |
| Intended user | Trained dental professionals |
What Does F Mean in Dental Diamond Burs?
F commonly denotes a fine finishing grade. Fine diamond burs are generally selected after standard or coarser instruments have completed the main preparation. Their role is controlled refinement rather than bulk reduction. Comparable manufacturer and distributor catalogues often classify fine diamond instruments around the 40–60 µm range and commonly use a red identification band, but the exact Gold Cura grit, band colour and dimensional specification should be confirmed from the supplied packaging or product specification.
Fine Finishing Is Not the Same as Final Polishing
A fine diamond bur can refine preparation geometry, reduce deeper scratches left by standard diamonds and improve margin definition. It usually does not replace the complete finishing and polishing protocol. Depending on the tooth surface or restorative material, an extra-fine diamond and a material-specific rubber polisher, disc, cup, brush or polishing paste may still be required.
When to Use Each Fine Bur Shape and Size
Important: first select the head geometry that matches the surface, margin or preparation. The number is not one universal small-to-large scale across different prefixes. Compare relative size mainly within the same shape family, and confirm the exact Gold Cura profile against the variant image, packaging and supplied specification.
| Code | Shape and relative profile | When to use it |
|---|---|---|

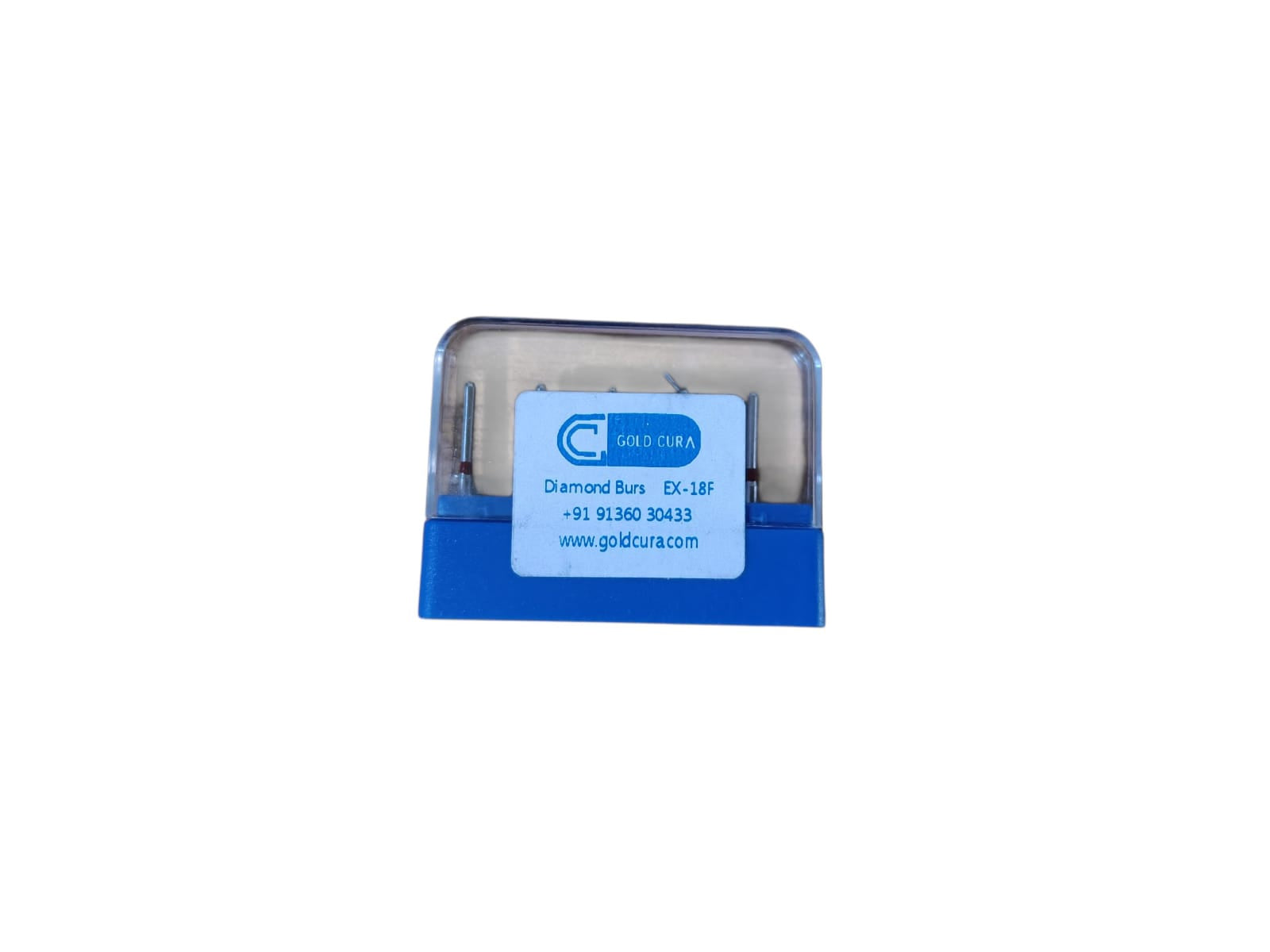

| EX-18F | Fine end-cutting profile | Choose for controlled finishing at preparation floors, inlay or proximal-box margins, small depth-orientation areas and locations where cutting should be concentrated at the end of the bur. Avoid using it as a side-cutting substitute. |

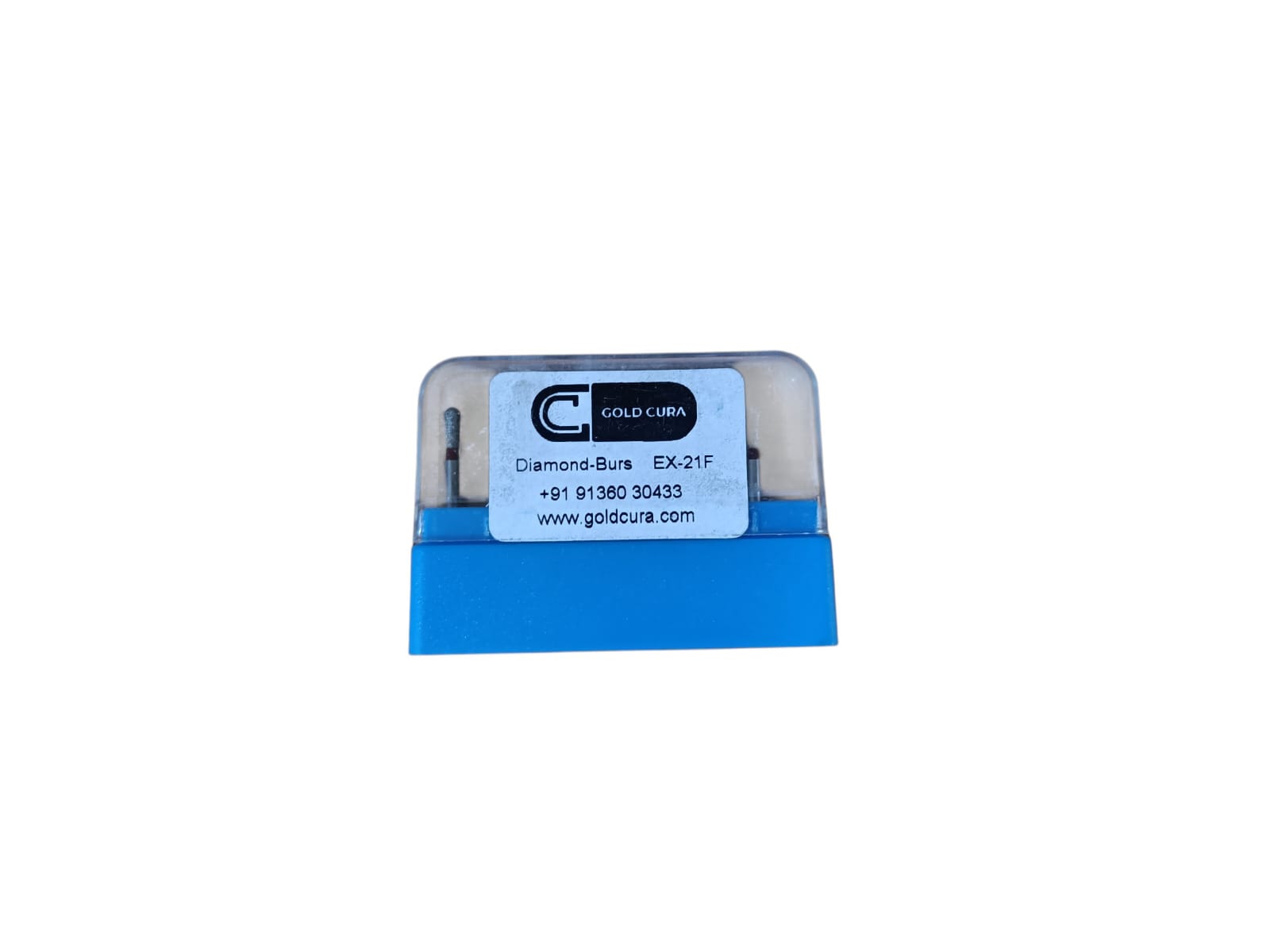

| EX-21F | Pear-shaped fine profile | Choose for occlusal-surface refinement, rounded cavity or internal preparation contours, occlusal rests and selected inlay, onlay or CAD/CAM preparation finishing where a pear form follows the existing anatomy. |

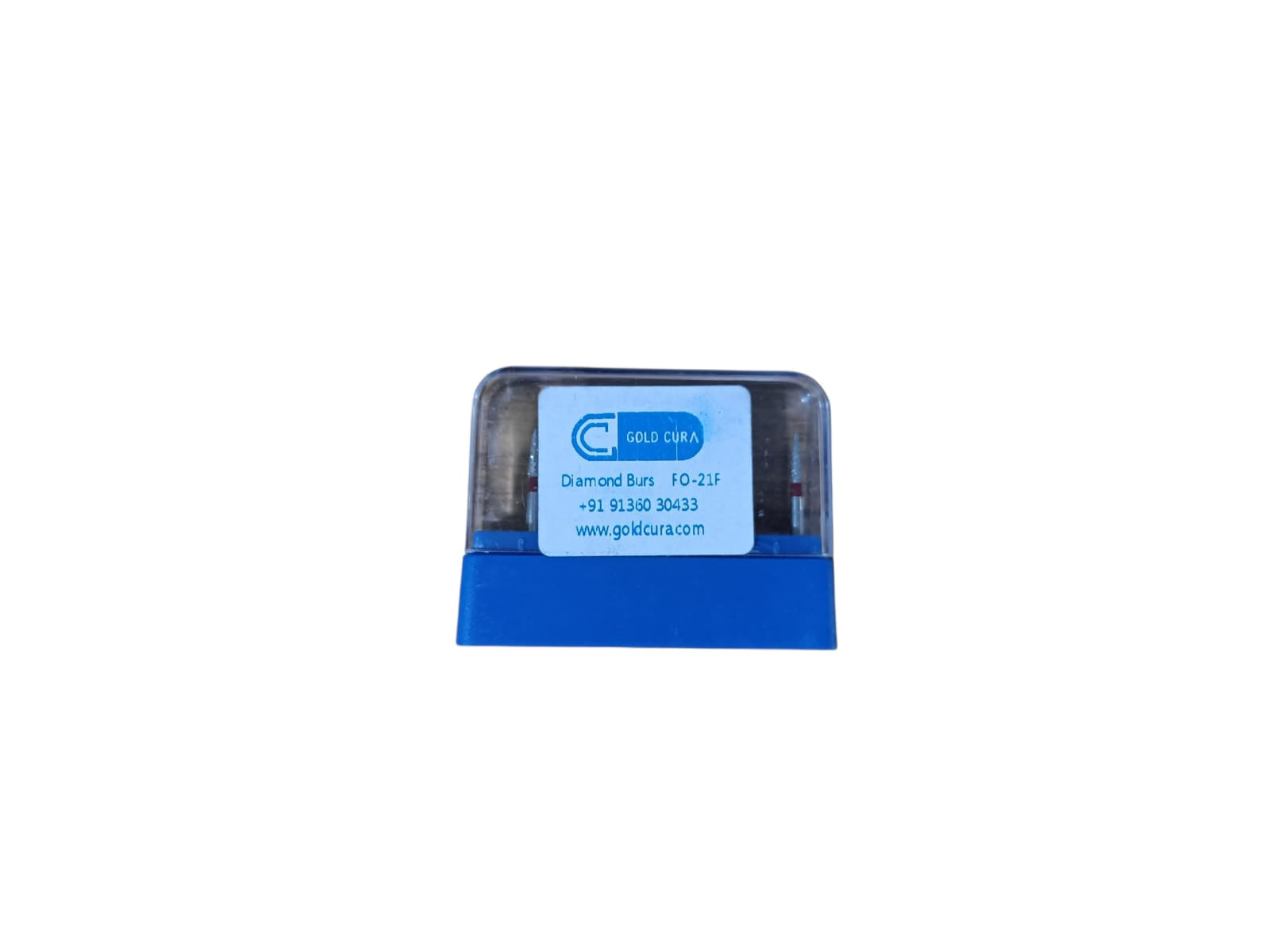

| FO-21F | Flame / ogival fine profile | Choose for fine margin definition, curved and convex surfaces, interproximal or lingual contour refinement and delicate finishing where tangential access is useful. |

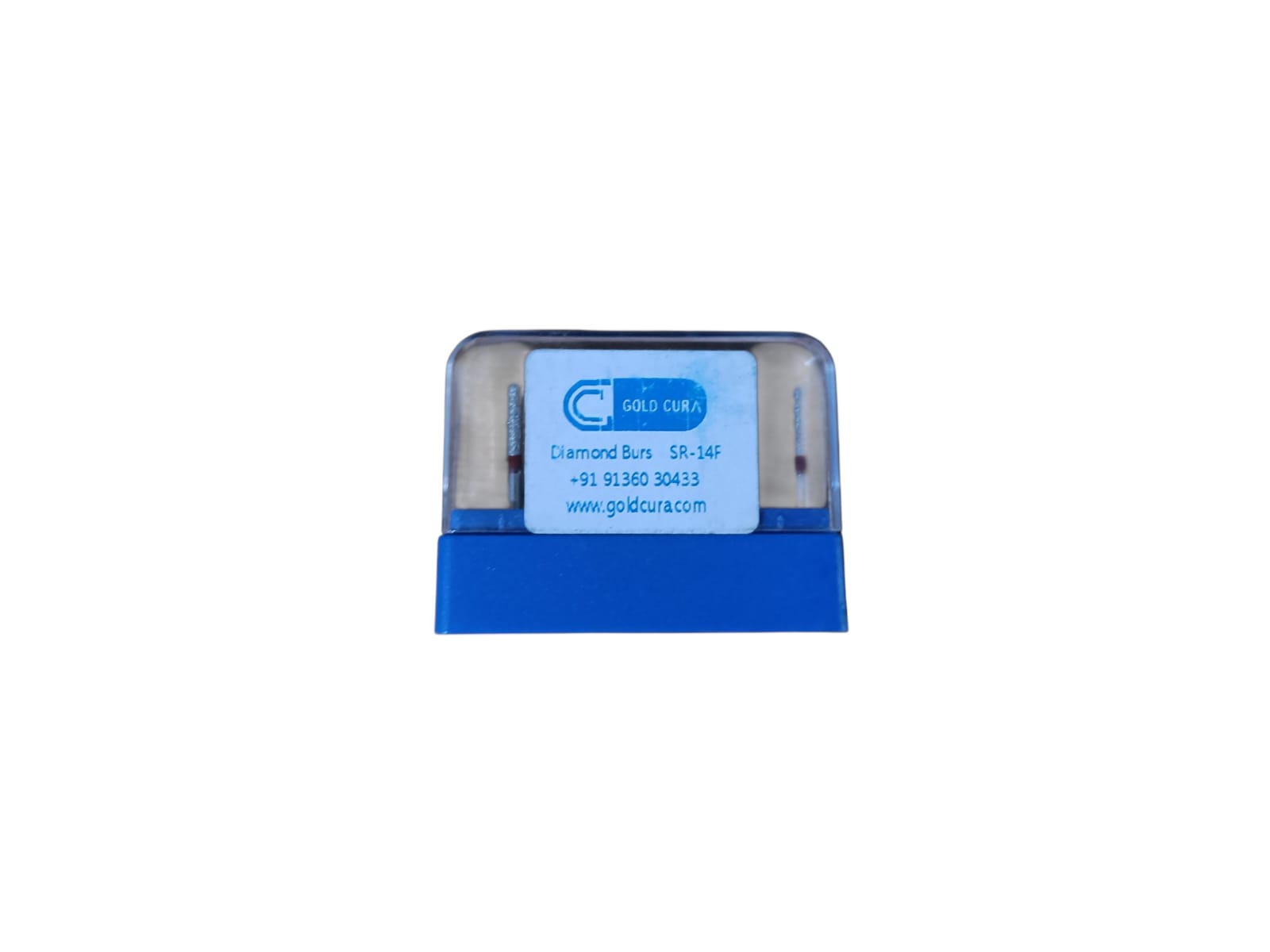

| SR-14F | Straight round-end / elongated fissure profile | Choose for smoothing straight or near-parallel axial walls, rounded internal line angles, selected box forms and margins where a straight-sided head with a rounded end matches the preparation. |
| TR-11F | Narrow, slender taper round-end profile | Choose for conservative axial-wall finishing, narrow preparations, smaller teeth and restricted areas where a slim round-ended taper limits unnecessary reduction. |

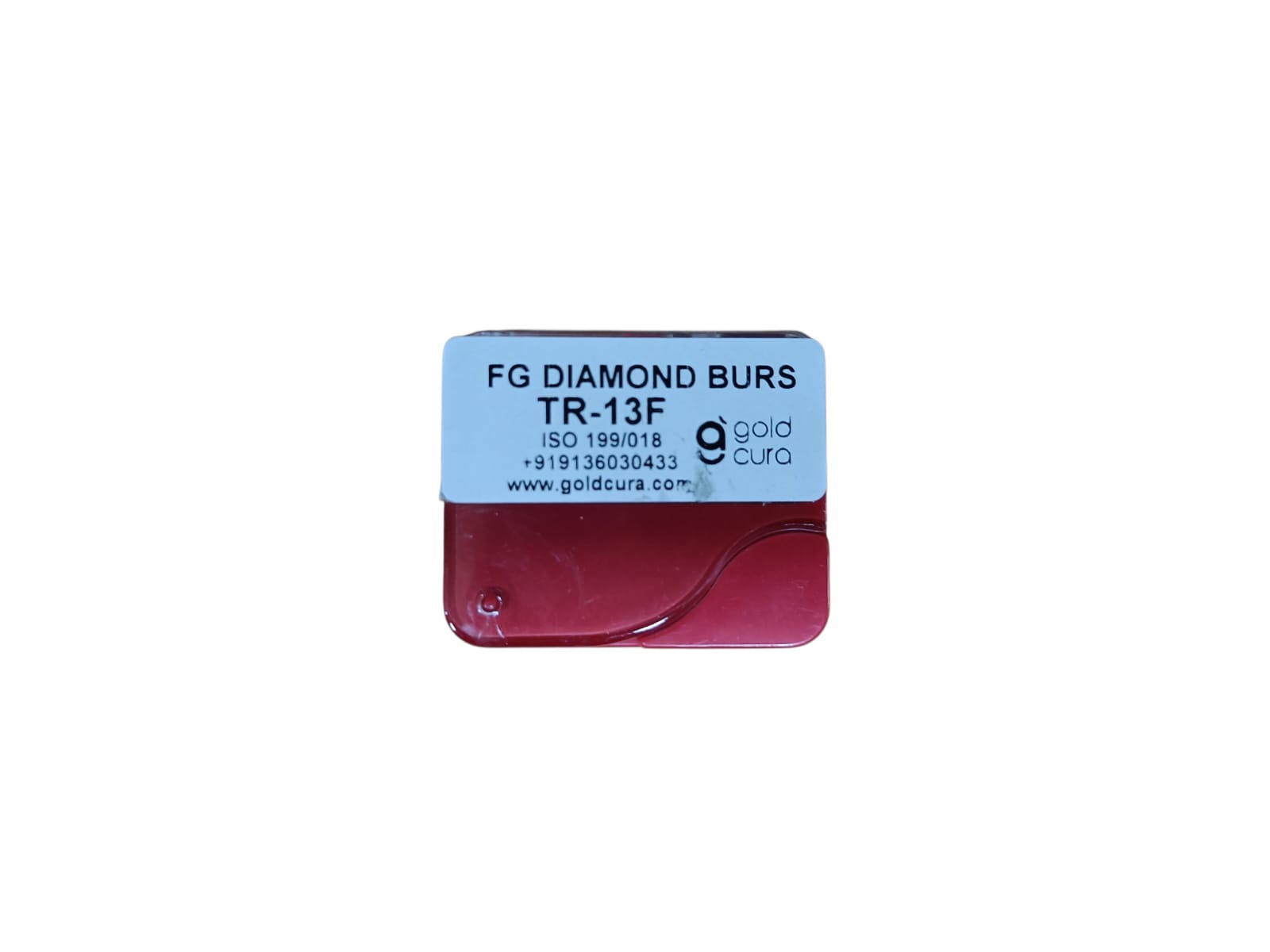

| TR-13F | Medium-width taper round-end profile | Choose as a general-purpose option for crown, inlay and CAD/CAM preparation refinement, axial-surface smoothing and rounded margin finishing when more working width is required than TR-11F. |

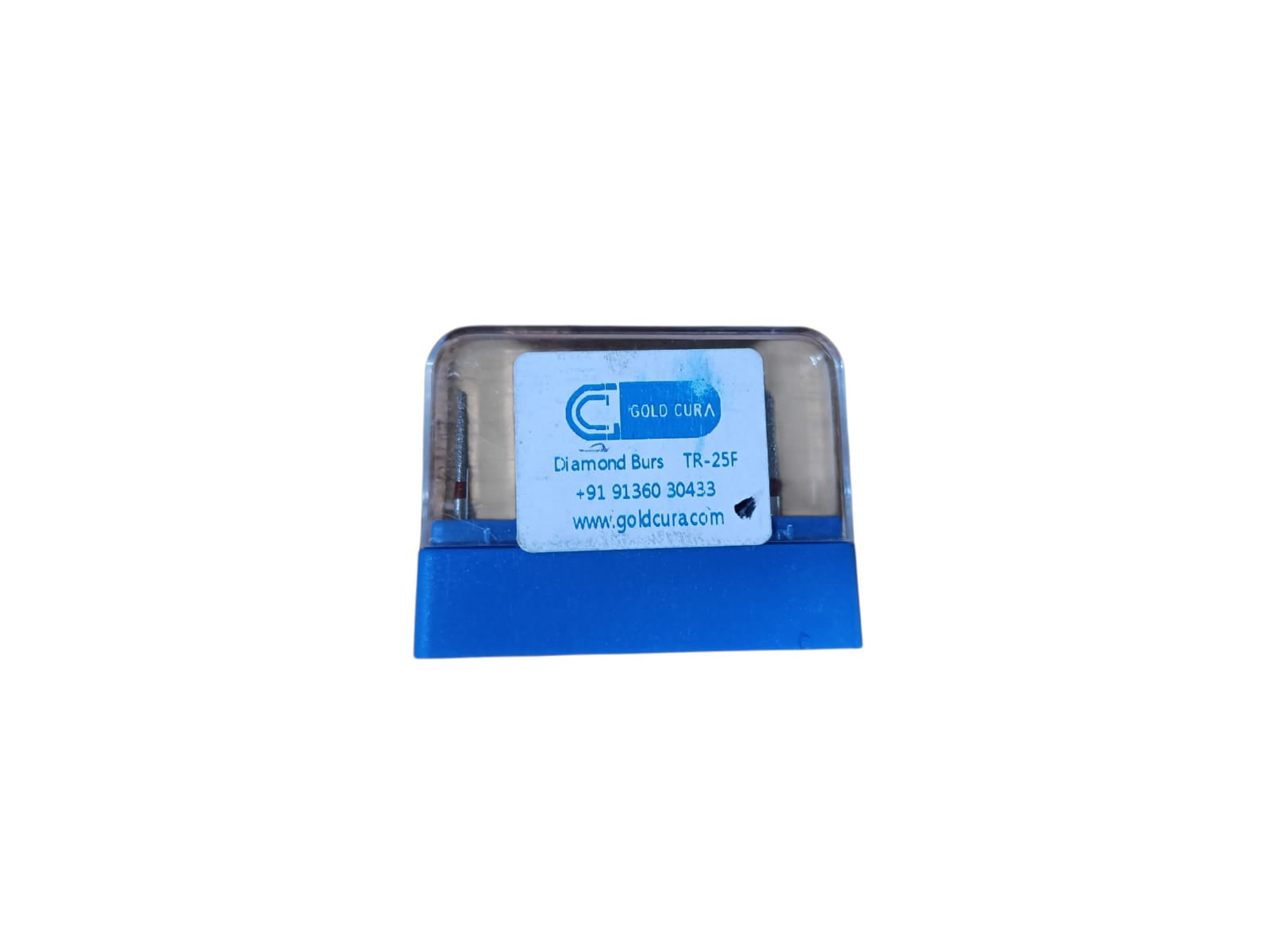

| TR-25F | Long, medium/slender taper round-end profile | Choose for elongated axial walls, long finish lines and narrow proximal access where additional reach and a controlled long taper are useful. |

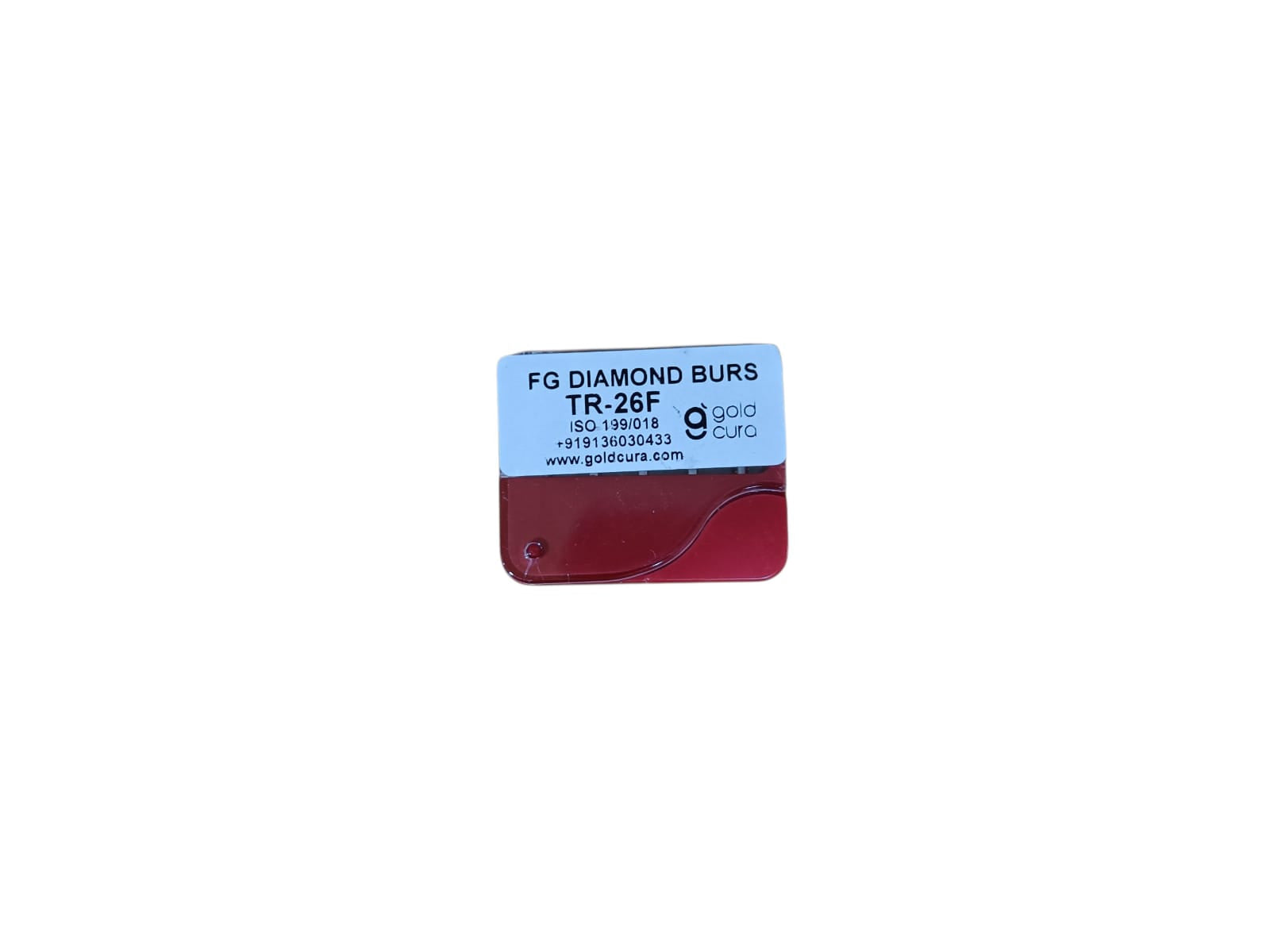

| TR-26F | Larger, wider long taper round-end profile | Choose for broader posterior preparations, larger teeth and wider axial or margin surfaces where a larger working profile can finish the surface evenly. |
Simple selection rule: match the bur shape to the preparation geometry, then select the smallest profile that can contact and finish the required surface evenly without changing the intended preparation.
Shape Guide: Which Fine Bur Code Should You Choose?
| Code or family | Head geometry | Typical finishing role |
|---|---|---|
| EX-18F | End-cutting | Floors, terminal areas, box margins and controlled end finishing |
| EX-21F | Pear | Occlusal, rounded cavity and internal preparation contours |
| FO-21F | Flame / ogival | Curved margins, convex surfaces and interproximal or lingual contouring |
| SR-14F | Straight round-end | Straight walls, rounded internal line angles and selected box forms |
| TR series | Taper round-end | Axial walls, rounded transitions, chamfer-style margins and crown preparation refinement |
Standard, Fine, Extra-Fine and Final Polishing: What Is the Difference?
| Stage | Primary purpose | Typical position in workflow |
|---|---|---|
| Standard or coarse diamond | Initial preparation, shaping and material reduction | Early preparation stage |
| Fine diamond | Contour correction, margin definition and preparation refinement | After initial shaping |
| Extra-fine diamond | Final diamond finishing, scratch reduction and pre-polishing refinement | After fine finishing where indicated |
| Rubber polisher, disc or paste | Material-specific final smoothness and gloss | Final polishing stage where indicated |
How to Choose the Correct Fine Diamond Bur
- Complete the main preparation first. Fine burs are intended for refinement, not substantial tooth or restorative-material reduction.
- Identify the surface or margin. Select end-cutting, pear, flame, straight round-end or taper round-end geometry according to the area being finished.
- Choose the minimum suitable size. A narrower profile supports conservative access; a wider profile can finish a broad surface more evenly.
- Match the end geometry. Use end-cutting for terminal areas, pear for rounded internal contours, flame for curved surfaces, SR for straighter walls and TR for tapered walls with rounded transitions.
- Use light, controlled contact. Excessive pressure can generate heat, remove unnecessary structure or alter the intended finish line.
- Use appropriate cooling and speed. Follow the instructions supplied with the burs and the clinical requirements of the tooth or restorative material.
- Continue the finishing sequence when required. Extra-fine diamonds or a material-specific polishing system may be needed after fine finishing.
- Inspect the instrument before use. Do not use a bur that is bent, damaged, corroded, worn or does not seat securely in the handpiece.
Clinical Applications
- Crown-preparation refinement and finish-line definition
- Inlay and onlay preparation finishing
- Veneer and anterior preparation refinement where the selected profile is appropriate
- Axial, occlusal, lingual and interproximal surface smoothing
- Rounded internal line-angle and box-form refinement
- Composite and restorative contour correction according to material-specific guidance
- CAD/CAM and ceramic preparation refinement according to clinical judgement
- Reduction of surface irregularities left by preceding diamond instruments
- Preparation for extra-fine finishing or the final rubber-polisher, disc, cup, brush or paste sequence
Grit, Dimensions, Speed and Processing Guidance
The F suffix identifies a fine finishing category, but exact grit, head diameter, working length, colour band, maximum speed, sterilisation cycle and reuse limit can vary between manufacturers. Do not treat another brand’s catalogue dimensions as Gold Cura specifications. Confirm these details from the Gold Cura packaging, supplier specification or instructions supplied with the product.
- Use suitable water cooling, light pressure and intermittent contact.
- Follow the restorative-material manufacturer’s finishing and polishing sequence.
- Follow the supplied cleaning, disinfection, sterilisation, reuse and replacement instructions.
- Replace a bur that is damaged, bent, corroded, visibly worn or no longer cuts and finishes efficiently.
- Use only by trained dental professionals.
Frequently Asked Questions
What are fine diamond burs used for?
They are used after the main preparation to refine margins, correct contours, smooth surfaces and reduce deeper scratches left by standard diamond burs.
What does F mean in a diamond bur code?
F commonly means fine finishing grade. The prefix and number identify the head geometry and profile, while F identifies the abrasive finishing category.
What is the difference between fine and extra-fine diamond burs?
Fine burs provide controlled contour and margin refinement after initial shaping. Extra-fine burs are generally used later for final diamond finishing and further scratch reduction before the definitive polishing stage.
Are fine diamond burs final polishers?
No. Fine diamond burs refine the preparation or restoration, but an extra-fine diamond or material-specific rubber polisher, disc, cup, brush or paste may still be required.
How many burs are included?
Each pack contains five identical burs of the selected code.
Is this a mixed assortment?
No. Select one code, and the pack contains five burs of that selected profile.
Which code is used for controlled end cutting and preparation floors?
EX-18F is the end-cutting option for controlled finishing at floors, terminal areas, box margins and other locations where cutting should be concentrated at the bur end.
Which code is used for occlusal and rounded internal contours?
EX-21F is the pear-shaped option for occlusal refinement, rounded cavity contours, occlusal rests and selected inlay or onlay preparation finishing.
Which code is used for curved margins and convex surfaces?
FO-21F is the flame or ogival option for curved margins, convex surfaces, interproximal or lingual contouring and delicate tangential finishing.
Which code is used for straight axial walls and rounded internal line angles?
SR-14F is the straight round-end option for near-parallel axial walls, rounded internal line angles and selected box forms.
What is the difference between TR-11F and TR-13F?
Both are taper round-end burs. TR-11F is the slimmer, more conservative option, while TR-13F provides more working width for general crown, inlay, axial-surface and margin refinement.
What is the difference between TR-25F and TR-26F?
Both are long taper round-end profiles. TR-25F is the more slender option for elongated walls and narrow access, while TR-26F is broader for larger teeth and wider posterior preparation surfaces.
Which handpiece is required?
These are FG or friction-grip burs for a compatible high-speed dental handpiece. Confirm secure seating before use.
Can fine diamond burs be sterilised and reused?
Follow the cleaning, disinfection, sterilisation, reuse and replacement instructions supplied with the product. Do not assume a cycle or reuse limit that is not stated in those instructions.
Related Gold Cura Dental Burs
- Dental Burs & Bur Kits
- Extra-Fine Finishing Diamond Burs FG
- Taper Round Diamond Burs FG
- Taper Flat-End / Tapered Fissure Diamond Burs FG
- Taper Conical Diamond Burs FG
- Flame-Shaped Diamond Burs FG
- Safe-Ended Diamond Burs FG
Professional-use dental instrument. Confirm the selected profile, abrasive grade, dimensions, handpiece compatibility, clinical indication and supplied processing instructions before use.
