Gold Cura
Gold Cura Taper Round-End Diamond Burs FG – TR Series, Pack of 5
In stock
Couldn't load pickup availability
In stock. Estimated delivery within 4–5 working days.
Quick Answer
FG taper round-end burs for crown preparation, axial reduction, chamfer margins and rounded internal transitions. Choose one of eight TR profiles; pack of 5 identical burs.
Direct answer: Gold Cura Taper Round-End Diamond Burs FG are tapered burs with a rounded terminal end for crown and bridge preparation, axial reduction, chamfer-style margins and smooth internal transitions. Choose TR-11, TR-12, TR-13, TR-14, TR-20, TR-21, TR-23 or TR-26. Each order contains 5 identical burs of the selected code.
Taper Round-End Diamond Burs: Key Facts
| Shape | Tapered sides with a rounded terminal end |
|---|---|
| Available codes | TR-11, TR-12, TR-13, TR-14, TR-20, TR-21, TR-23 and TR-26 |
| Typical applications | Crown preparation, axial reduction, chamfer margins, veneer preparation and rounded internal form |
| Shank | FG / friction grip |
| Pack size | 5 identical burs of the selected TR code |
When to Use Each TR Bur
Comparable catalogues group TR-11 to TR-14 as longer heads of progressively greater width and TR-20, TR-21 and TR-23 as shorter heads from narrow to wide. TR-26 is a compact special profile. Common competitor dimensions must not be treated as confirmed Gold Cura specifications.
| Code | Relative profile | When to use it |
|---|---|---|

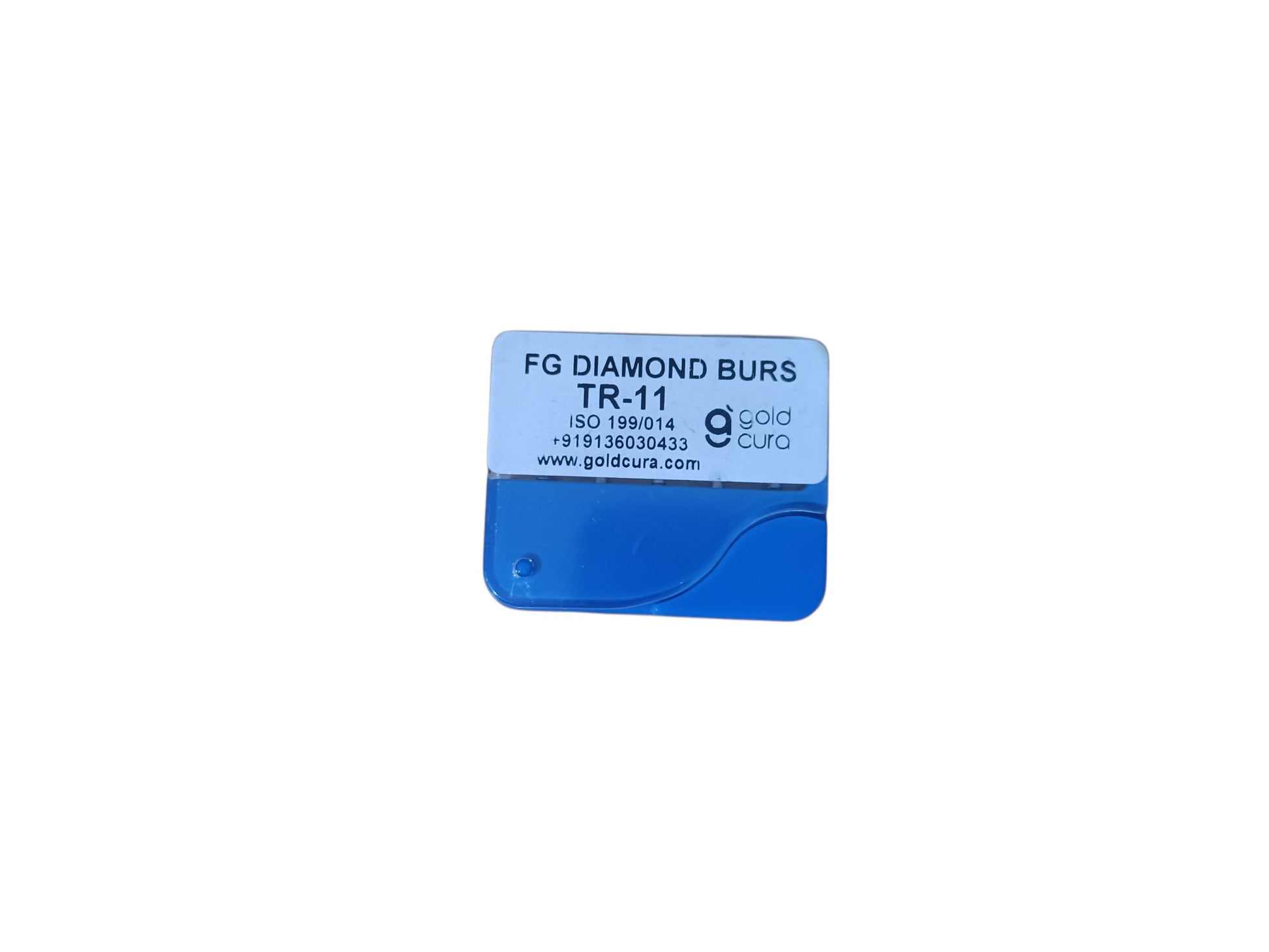

| TR-11 | Narrow long round-end | Conservative crown and veneer preparation, narrow axial walls and smaller teeth requiring extended side contact. |

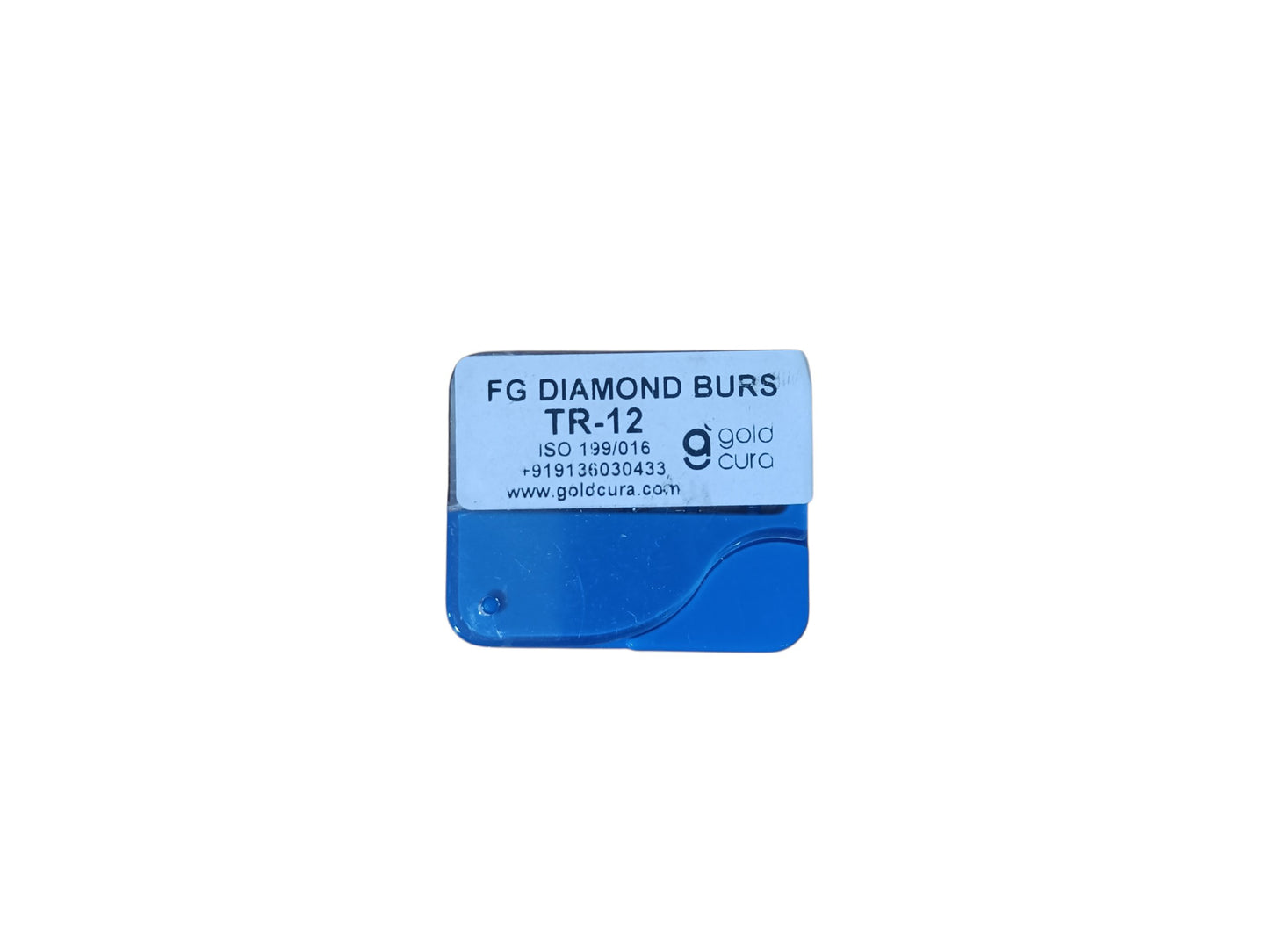

| TR-12 | Medium long round-end | General-purpose crown preparation, routine axial reduction and moderate chamfer development. |

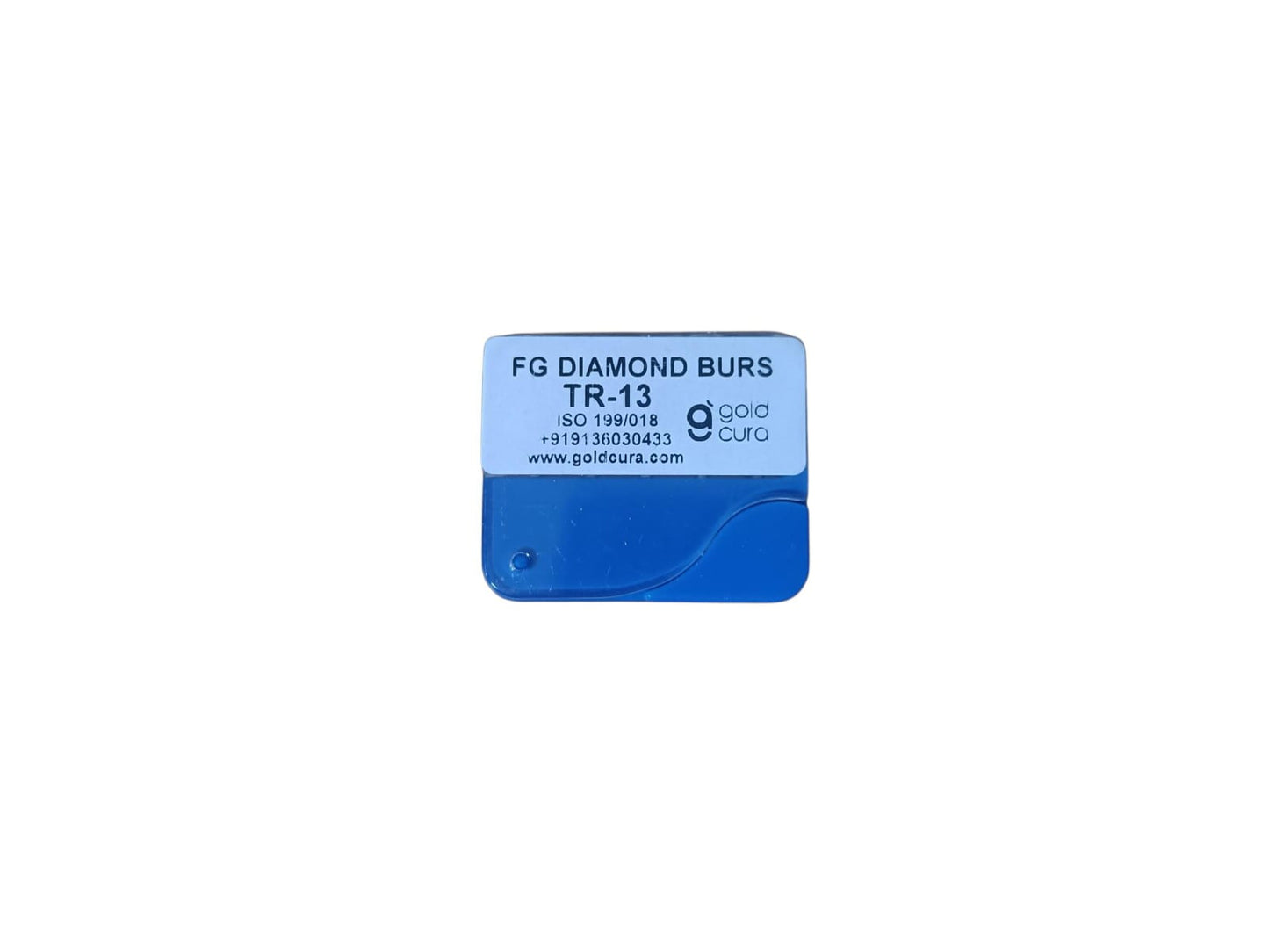

| TR-13 | Wide long round-end | Broader posterior preparation, wider axial reduction and more substantial chamfer margins. |
| TR-14 | Broadest long profile | Large posterior teeth, extensive axial reduction and broad chamfer preparation where a robust head is appropriate. |

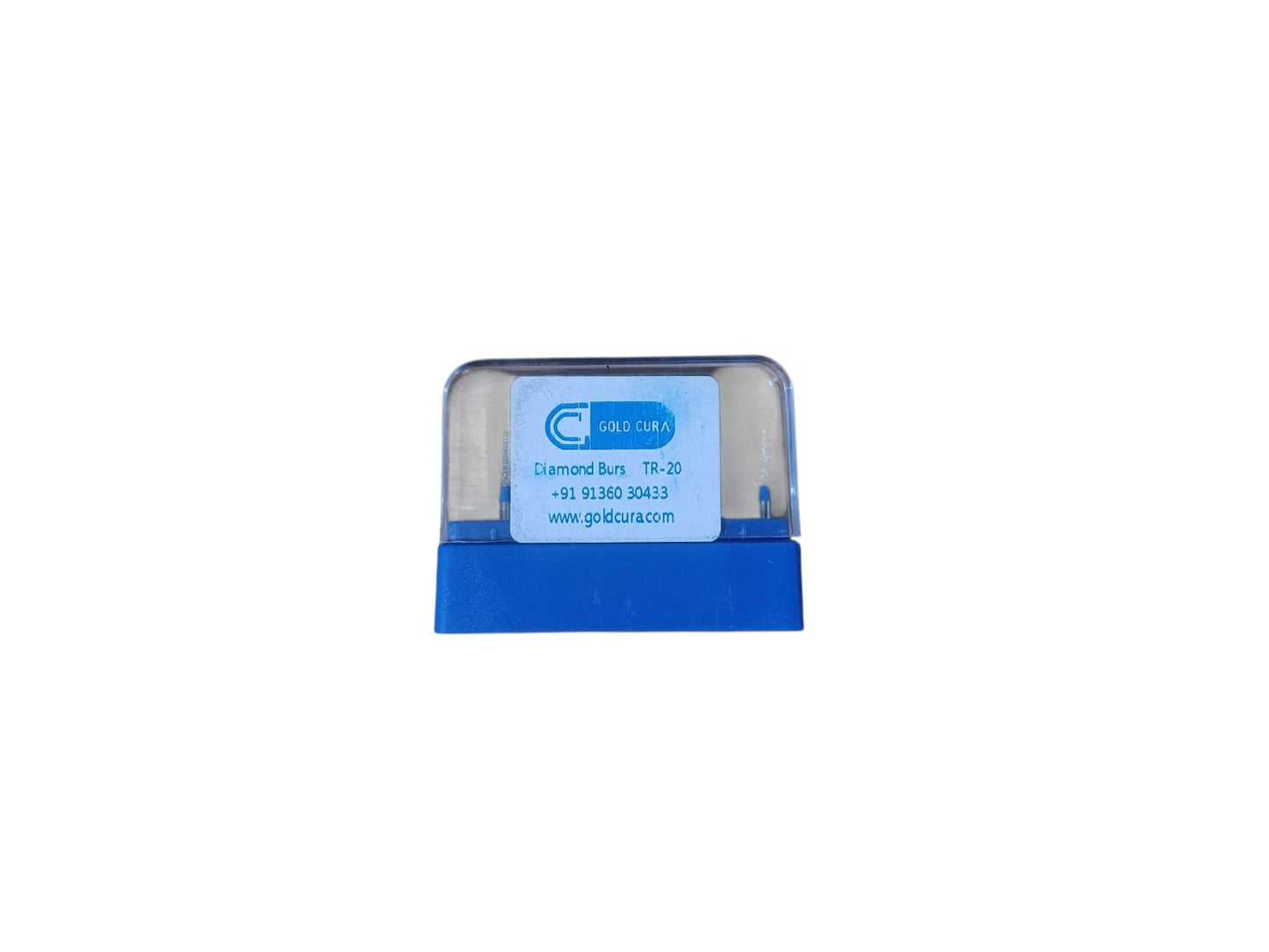

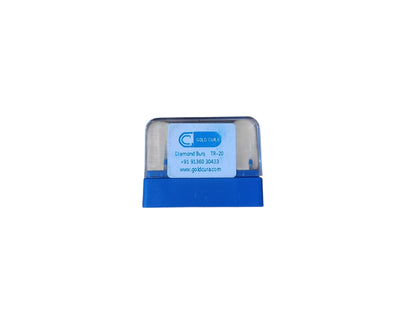

| TR-20 | Narrow shorter round-end | Conservative short-wall preparations, localised chamfers and restricted access. |

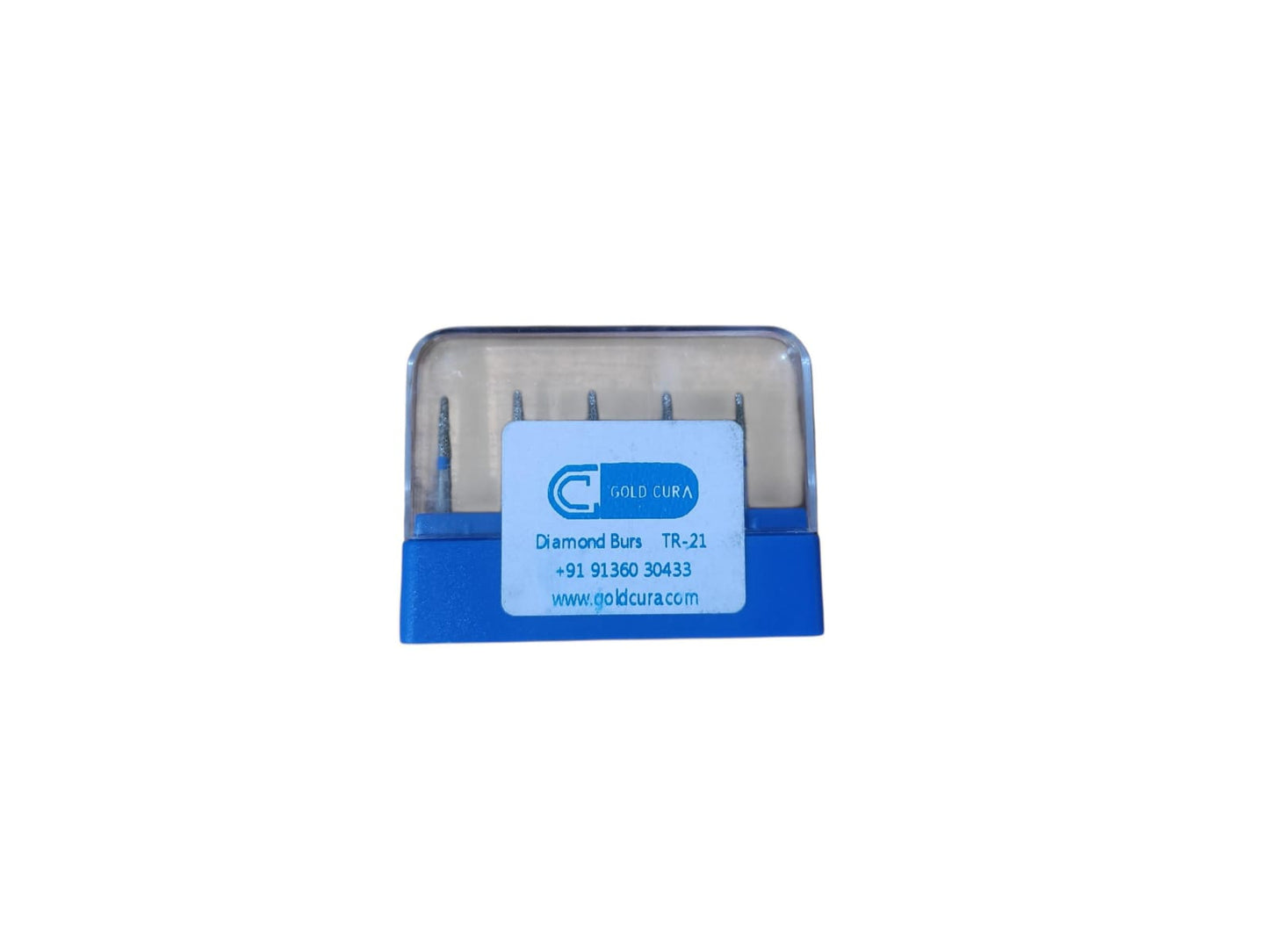

| TR-21 | Medium shorter round-end | Routine shorter crown or inlay preparation and moderate localised axial reduction. |

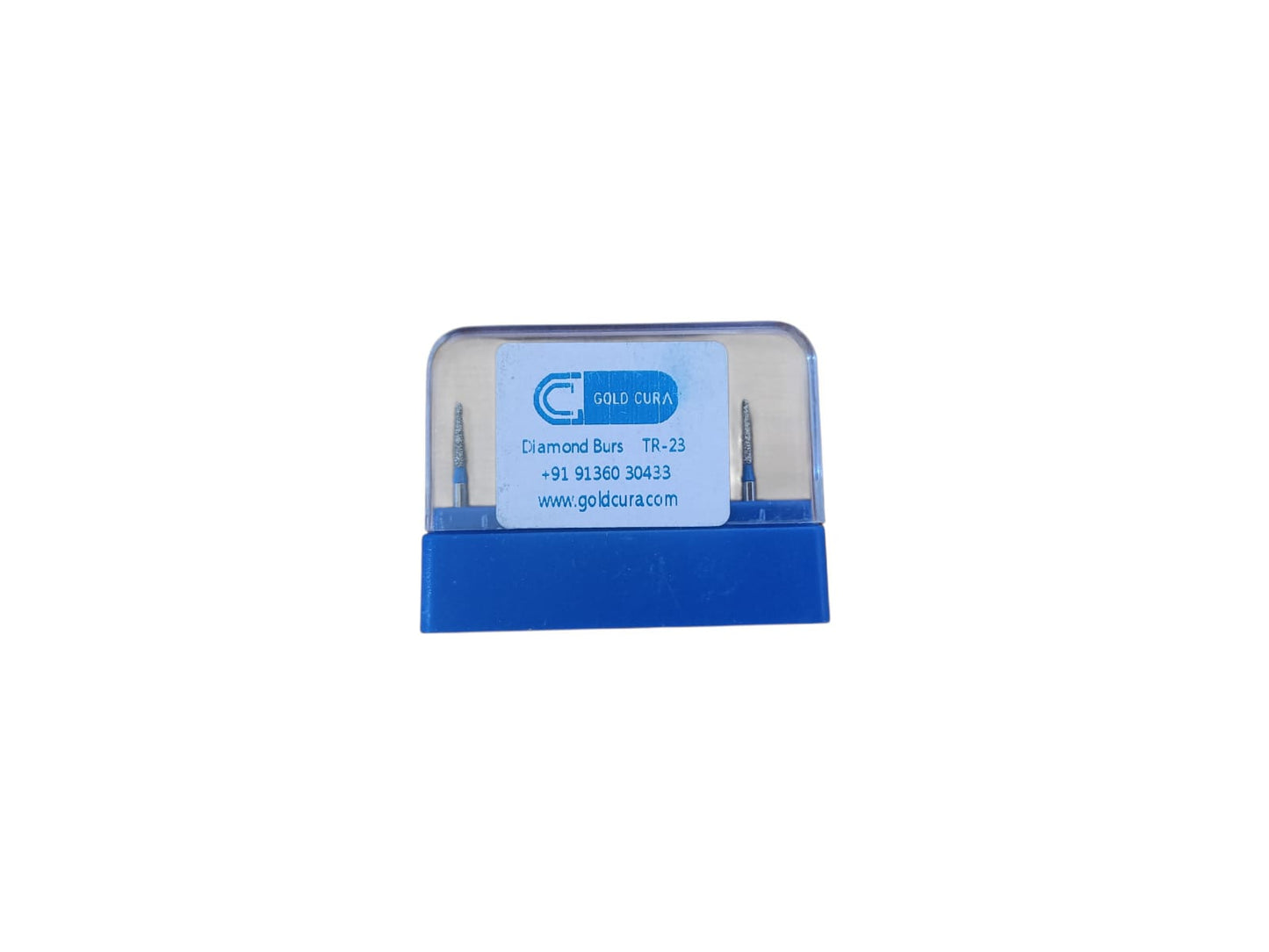

| TR-23 | Wide shorter round-end | Broad but shorter posterior preparations and wider localised chamfer development. |

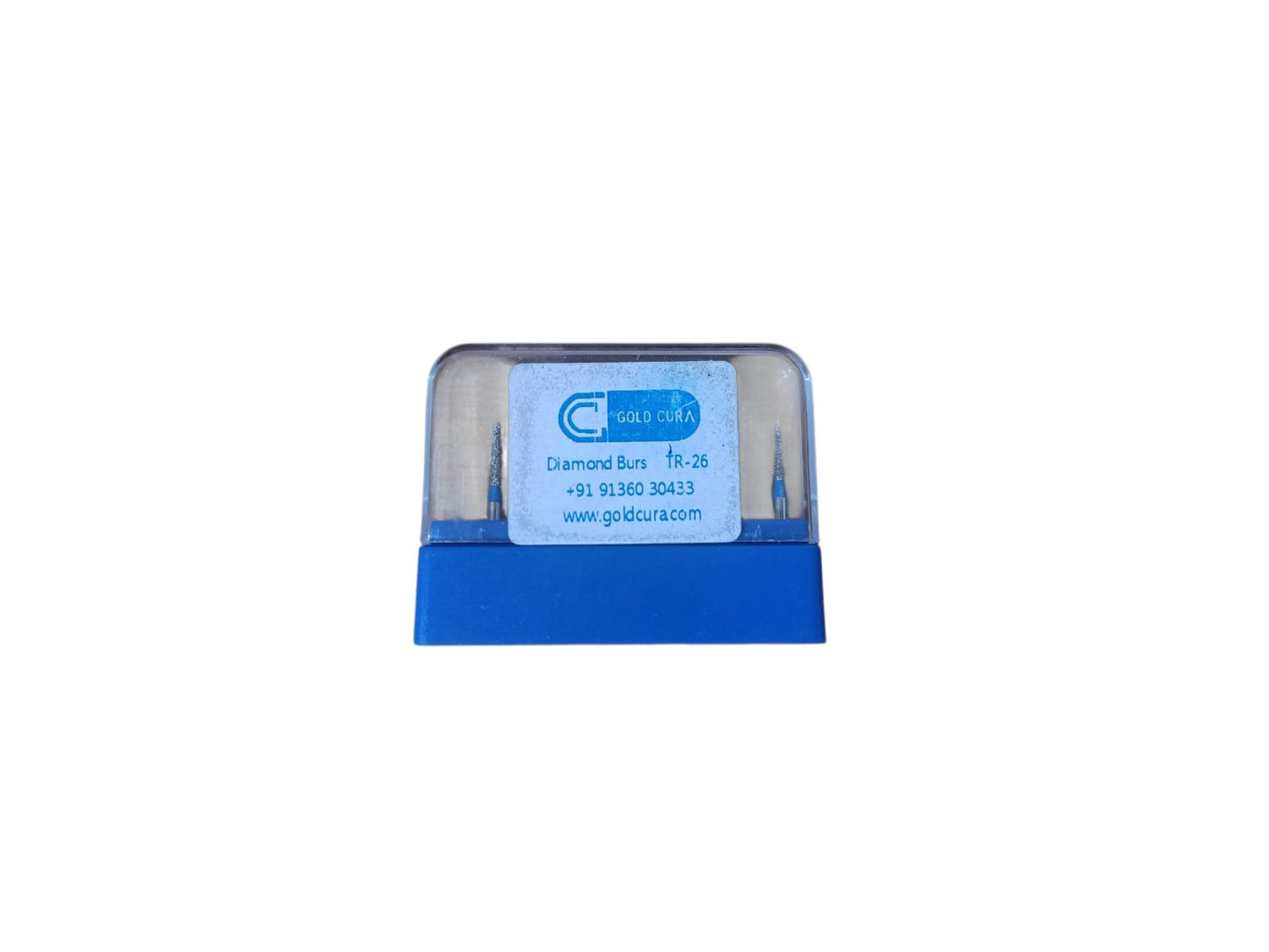

| TR-26 | Compact special round-end | Localised margin refinement, conservative access and precise rounded internal contouring where a standard long head is unnecessary. |
Simple selection rule: TR-11 to TR-14 are long profiles from narrow to broad; TR-20, TR-21 and TR-23 are shorter; TR-26 is the compact precision option.
Taper Round-End vs Taper Flat-End
| Shape | Terminal form | Typical preparation |
|---|---|---|
| TR round-end | Rounded | Chamfer margins and rounded internal transitions |
| TF flat-end | Flat | Shoulder or butt-joint terminal form |
| TC conical point | Pointed | Interproximal access and fine contouring |
How to Select and Use a TR Bur
- Choose the required working-head length.
- Choose the smallest width that creates the planned chamfer or contour.
- Follow the intended path of insertion and preserve rounded internal line angles.
- Use water cooling, light pressure and intermittent contact.
- Use a fine or extra-fine counterpart for final margin refinement when indicated.
Frequently Asked Questions
What are taper round-end diamond burs used for?
They are used for crown preparation, axial reduction, chamfer-style margins and rounded internal transitions.
Which TR burs are long?
TR-11, TR-12, TR-13 and TR-14 are the long group, progressing from narrow to broad.
Which TR burs are shorter?
TR-20, TR-21 and TR-23 are shorter profiles from narrow to wide.
When should I use TR-26?
Use TR-26 for compact localised preparation and precision rounded contouring, subject to the supplied profile specification.
What is the difference between TR and TF?
TR has a rounded end for chamfer-style preparations; TF has a flat end for shoulder-style terminal form.
Is this a mixed pack?
No. The pack contains five identical burs of the selected TR code.
Are competitor dimensions Gold Cura specifications?
No. Confirm exact Gold Cura dimensions, grit and maximum speed before use.
Can these burs be sterilised and reused?
Follow the supplied cleaning, sterilisation, reuse and replacement instructions.
Related Gold Cura Dental Burs
- Tapered Fissure Diamond Burs
- Taper Conical Diamond Burs
- Chamfer Diamond Burs
- Fine Finishing Diamond Burs
Professional-use dental instrument. Confirm the selected profile, dimensions, grit, speed, cooling and processing instructions before use.
Browse related products: Dental Diamond Burs.
Need help selecting a bur? Use the Dental Diamond Bur Shapes Selection Guide to compare round, tapered, conical, finishing and coarse profiles.
